commercial truck transmission jack PLT300/150-1300E

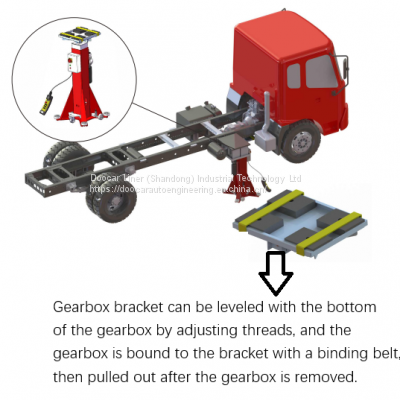

The gearbox pit jack can finish the gearbox transmission through adjusting the gearbox bracket to be leveled to the bottom of the gearbox by thread, and the gearbox can be bound to the bracket by the binding belt, and then move it out after the gearbox is disassembly.
The pit transmission jack features:
It is suitable for use in pits of different specifications, and the movable pit design can eliminate the requirements for pit strength and structure of traditional traversing pit lifts.
2.Double locking (hydraulic lock and mechanical lock) is safer and more reliable, eliminating potential safety hazards.
3.Dual control of panel and wire control handle, more convenient to operate.
4.The lifting weight of a singel jack is 30/15 t, meeting the satisfaction of heavy truck gearbox lifting.
5.The imported integrated reversing valve block has high hydraulic sealing performance and meets the working requirements of double-acting cylinders.
6.The two-stage oil cylinder can ensure that the stroke reaches 1280MM at a suitable body height, and can easily complete the entire gearbox below the lowest point of the vehicle and move it out of the vehicle bottom range.
7.The equipment is equipped with leaf spring support bearings and heavy-duty roller bearings, which can slide flexibly and easily.
8. The pit jack is suitable for gearbox disassembly of commercial vehicle and heavy trucks, as well as other lifting and transmission works
>>
