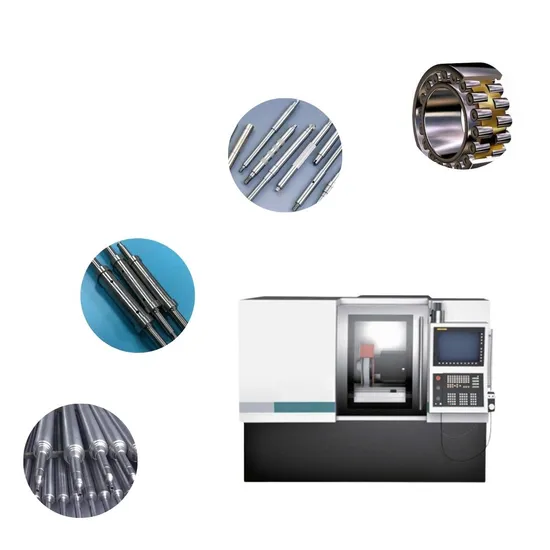

Precision CNC Series Cylindrical Grinding Machine Mk1320b/Mk1332

Product Description

Specificities:
The spindle of the grinding wheel adopts the largetaper four-oil wedge bearing to automaticallyadjust the gap dynamic pressure, which hashigher rigidity and precision of the grinding wheel.eTable (Z axis)drive and horizontal feed (X axis)drive adopts THK ball screw servo direct drivestructure,Table(z-axis)guide rail adopts openunloading hydrostatic guide rail structure, goodrigidity, motion balance, low friction coefficientlow speed and no creep.The transverse-feeo(X-axis)guide rail adopts Swiss linear guiderail and applies pre-tightening forceto meetthe requirements of hiah rigidity. low friction
no clearance and good dynamic response forprecision grinding.
The workhead adopts static spindle top grindingstructure with good rigidity, suitable for precisiongrinding.
Tailstock sleeve adopts linear bearing structureno gap feeding, good rigidity, and can realizehydraulic braking and manual dual mode control.oThe bed adopts double-layer structure(finiteelement analysis),special ratio cast iron castingmanual scraping and grinding of guide rail surface.good dynamic/static rigidity, stable thermadeformation.

Model No.		MK1320	MK1332
Item No.
General capacity
Distance between centers		500,750 mm	500,750,1000,1500 mm
Center height		135 mm	180 mm
Dia.Ground(O.D)		8~200 mm	8~320 mm
Max. weight of work piece		50 kg	100 kg
Workhead
Center taper(MT)		4 MT	4 MT
Spindle speed /Stepless		50HZ:25~260r/min	50HZ:25~260r/min
Wheelhead
Max. dimension of wheel(ODxWxlD)		400x50x203 mm	400x50x203 mm
Wheel peripheral velocity		35 m/s	35 m/s
Min set unit		0.0001 mm	0.0001 mm
Table
Max.swiveling angle of table	Clockwise	5°(500)3°(750)	3°
	Anticlockwise	9°	9°(500)8°(750)7°(1000)6°(1500)
Tailstock
Center taper(MT)		4 MT	4 MT
Quill travel		30 mm	30 mm
Electric system
CNC System		HNC-808DG,Siemens 808D,Fanuc OI MF
Wheelhead motor power		4 kw	4 kw
Workhead motor power		1.5 kw	1.5 kw
Machine accuracy
Roundness		2μm	2(500,750)3(1000,1500)μm
Cylindricity		5μm	5(500,750)8(1000,1500)μm
Roughness		Ra0.2μm	Ra0.2μm
Machine
Gross weight		3.2T(500)3.6T(750)	4.3T(500)4.6T(750)5T(1000)5.6T(1500)
packing dimension(cm)		285x190x220(500)	360x230x220(500)
			395x230x220(750)
		340x190x220(750)	465x230x220(1000)
			585x230x220(1500)

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
