Win7/8/10/11 USB to IR Infrared Optical Adapter for Energy Meter IEC1107 Dlms Kwh Meter Gas Meter Water Meter Reading

Product Description

Product Description

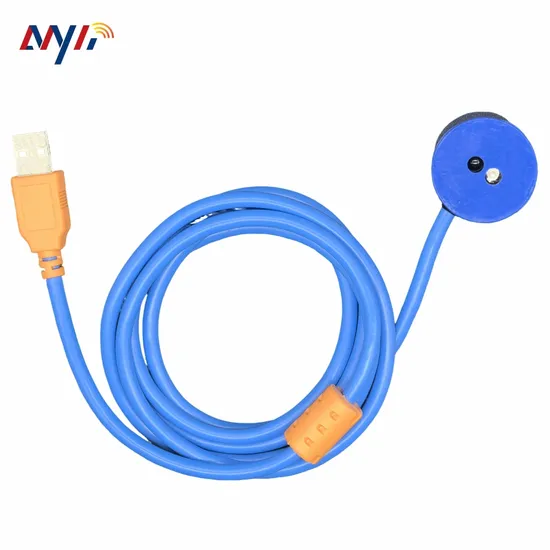

MY001-B USB2.0 optical probe is used for local serial communication using infrared communication between static smart electricity/water/flow/gas meters (meters or other equipment) with optical interface on one side and a PC or HHU (Hand-Held Units) with USB2.0 interface on the other side. on the other. The optical probe parameters fulfill all technical requirements on data transmission in accordance with the standard IEC62056-21 (old IEC1107) and the set of users'requirements DLMS/COSEM. The optical probe has a infrared transmit and a infrared receive diode. The optical probe is fitted with a permanent magnet, which ensures that the probe remains attached on the meter during data collection. Data is transferred via an infrared light using serial two-way communication.
Product Features
★This probe are intended for both-way serial communication with the meter via infrared.
★Compatible with IEC meters,MID meters.
★Compatible with IEC1107/IEC62056-21/ DLMS/COSEM protocol.
★Laser marking, support paid customized customer information and model.
★Transparent data transmission, supporting all protocols.
★probe is attached to smart meter by the permanent magnet.
★Support Windows XP/ 7/8/10/11,Android ,Mac,Linux.
★Two-color (red/green)communication indicator that blinks during communication.
★Infrared transceiver for electricity meters.
★Infrared optical head for energy meter calibration
★Wireless IR data collector for AMR systems
Product Parameters
Detailed Photos
Company Profile

FAQ
Q1: What advantages do you have?A1: Our brand is MYDZIrDA, we are a manufacturer of more than 5 years' experiences, we have professional developing, marketing& production team to offer you the most competitive price and best service.Q2:Could you print our own logo?A2:Yes, Our company are available for Retail & Wholesale & OEM & ODM.Q3:What is your pricing strategy?A3:We provide affordable prices and customized services. You will get a price discount based on quantity.Q4:Do you provide samples for testing, free or extra?A4: We can provide samples, but we will charge reasonable cost.Q5: What payment method do you accept?A5: We accept payment method of T/T (bank transfer), Western Union, PayPal and so on.For more questions, please feel free to send inquiries to us.

---
