Product Description
Product Description
Product Description

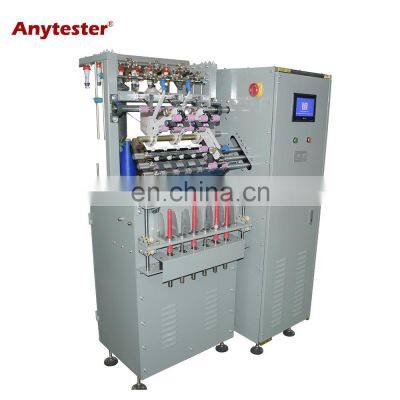

AT206F Fancy Spinning Machine is a ring spinning machine with special accessories to spin fancy yarns of change in color or structure, such as slub yarn, variable twist yarn, core-spun yarn winding yarn (an existing yarn wound onto the new-spun yarn) by modifying draft ratio or twist, besides the normal functions of ring spinning machine
Features
Easy to operate
Large touch screen display and PLC control;Independent controlling of core-adding roll and drafting rolls
Skided Design
1. Multi-functions of color-change yarn, slub yarn, varibable-twist yarn, core-spun yarn and winding yarn besides the normal functions of ring spring machine;2. Program for spinning up to 30segments of setting spinning time, front roll linear speed, middle roll linear speed, back roll linear speed and core-feeding roll linear speed.
Specification
Model
| AT106F
| AT206F
|
|
Control mode
| Touch screen & PLC control
| Touch screen & PLC control
|
|
Suitable fiber type
| Cotton or cotton-type fibers
| Cotton or cotton-type fibers
|
|
Fiber length
| 21~42mm
| 21~42mm
|
|
Output capacity
| 0.25~0.5kg/h
| 0.25~0.5kg/h
|
|
Linear density of yarn
| 6~99tex
| 6~99tex
|
|
Spindle gauge
| 70mm
| 70mm
|
|
Number of spindles
| 6,12
| 6,12
|
|
Ring diameter
| 42mm
| 42mm
|
|
Pressure mode
| Pendulum arm for cotton spinning
| Pendulum arm for cotton spinning
|
|
Draft system
| Three-roll-up & three-roll down
| Three-roll-up & three-roll down
|
|
Draft ratio
| 2~50
| 2~50
|
|
Diameter of drafting rolls
| 25mm
| 25mm
|
|
Distance between front &middle rolls
| 44~73mm
| 44~73mm
|
|
Distance between middle & back rolls
| 47~48mm
| 47~48mm
|
|
Spindle length
| 205mm
| 205mm
|
|
Twist range
| 200~2000T/m, adjustable
| 200~2000T/m, adjustable
|
|
Spindle speed
| Maximum 12000rpm
| Maximum 12000rpm
|
|
Packing & Delivery
Packaging
|
|
Size(cm)
| 73 (L) * 72 (W) * 168.5 (D)
|
Weight
| 260 Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Related Products
AT205 lab roving machine
| HY1002 Lab carding machine
| HY1004 Lab drawing machine
| HY1007 Two for one twister
|
Contacting us
ERIC QIN
|
|
Website
|
|
Mobile Phone
| +86 188 5510 5986
|
Whatsapp
| +86 188 5510 5986
|
Skype
| eric-qlk
|
Wechat
| +86 188 5510 5986
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
>>
