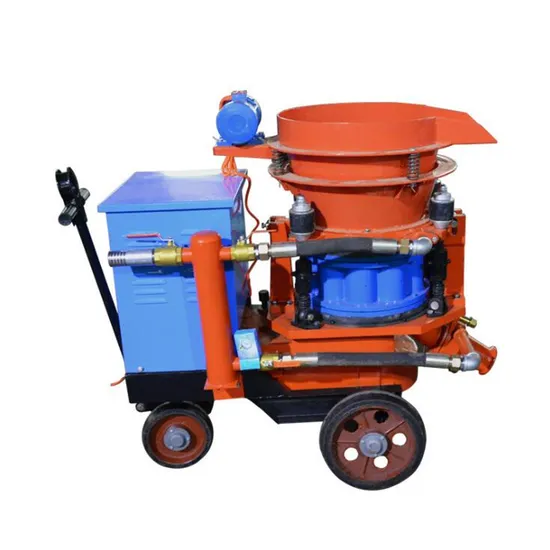

Tunnel Engineering Slope Support Dry Mix Shotcrete Equipment

Product Description

Model	Pz-5	Pz-6	Pz-7	Pz-5D	Pz-6D
Capacity m3	5	6	7	5.5	6
Power kW	5.5	5.5	7.5	5.5	5.5
Pressure Mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.2-0.4	0.2-0.4
Pipe Inner Diameter	Φ51	Φ51	Φ51	Φ51	Φ51
Water-cement Ratio	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4

Description
The machine is mainly driven by a motor, reducer, rotor assembly, sealing plate, rubber plate, compactor mechanism, hopper seat, mine wheel, vibration hopper, compression mechanism, air Systems and electronic control devices, and other components. The motor shaft ends the drive gear shaft and, after decelerating by the gear unit, drives the rotor mounted on the output shaft to rotate.
Features
1. Non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between the sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
Cement Mortar & Shotcrete Equipment
Company Profile
Shaanxi Zhongtuo Mining Equipment Co., Ltd. is a global supplier specializing in bridge stretching equipment, downhole drill series, steel processing machinery, rock splitting equipment, grouting equipment and pavement processing equipment.
With the improvement of high-quality products and good services, our products are trusted and appreciated by customers from all over the world. At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
Our Team
FAQ: Q1: Whether the rig is used for rock holes or soil holes? A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit. Q2: How much tonnage can a bridge jack lift?? A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump? A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump? A4: For the tension jack, it is 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump. Q5: What kind of packages does a set of anchors have? A5: Anchor ring, clip, anchor pad, spiral rib. Q6: Which payment term can you accept? A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty? A7: One year for the machine and provide technical support according to your needs. Q8: How long will it take to arrange production? A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days. Q9: Which trade term can you accept? A9: Available trade terms: FOB, CIF, CFR, EXW, etc. Q10: Do you provide samples? Is it free or extra? A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight. Q11: What are your terms of payment? A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

---
