Welcome to visit

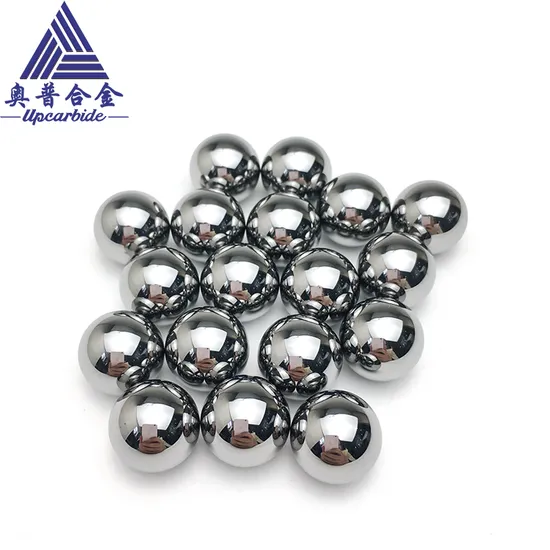

K10 Diameter Polished Carbide Round Balls

US$45.00
5-499 Pieces
US$40.90
500-999 Pieces
US$38.90
1,000+ Pieces

Basic Info.

Standard Parts
No
Universal
Yes
Type
Bearing Ball
Material
Tungsten Carbide
Usage
Use in Ball Valve
Diameter
42.826mm
Surface
G24 Polished
Grade
Yg6
Co
6%
Wc
94%
Density
14.9g/cm3
Hardness
90.5hra
Transport Package
Individual Package
Specification
YG6/K10
Trademark
ZZUP
Origin
Zhuzhou Hunan
HS Code
8209001000
Production Capacity
1000000

Product Description


Specifications
the unground ball is suitable for milling all kinds materials;
the grinding and polishing ball is suitble for precision punching member stretched, precision bearings,instruments,meters,Pen, spraying machines,pumps,machinery parts,valve seals,brake pump,squeeze-hole punch, oil,hydrochloric acid laboratory,hardness measuring instrument,fishing gear,with heavy,ornamented,finished,the high-end industry!
1. Diameter: 15.15mm
2. Grade: YG6,6% CO
3. Hardness: 90.5HRa
4. polished G10.
6. Product customize sizes and shape.
Products Show

Grades for choosing
Grade Density (g/cm3) Hardness (HRA) T.R.S (MPa) Grain size (μm) Compositions (%)
YG10X 14.6 91.8 3000 0.6~0.8 10% CO 90% WC
YG6X 14.85 92.0 1860 0.8~1.0 6% CO 94% WC
YG8 14.80 89.5 2320 1.2~2.0 8% CO 92% WC
YG6 14.85 90.0 2150 1.2~2.0 6% CO 94% WC
YN6 14.0 90.0 1400 1.2~2.0 6% CO 92% WC 2% Ni

Sizes for choosing
common sintered balls diameters (mm)
0.4 0.5 0.8 1.0 2.0 3.0 4.0 5.0
6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0
14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0
22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0
30.0 31.0 32.0 35.0 36.0 37.0 38.0 39.0
40.0 41.0 42.826 45.0 50.0 52.0 55.0 60.0
62.0 65.0 70.0 75.0 80.0 90.0
we have more than 100 kinds of diameter for your choose,other diameters pls chat with sellers.

Accuracy grade and tolerance standard
Ball series
Packing & Delivery

Shipping ways
Production process
