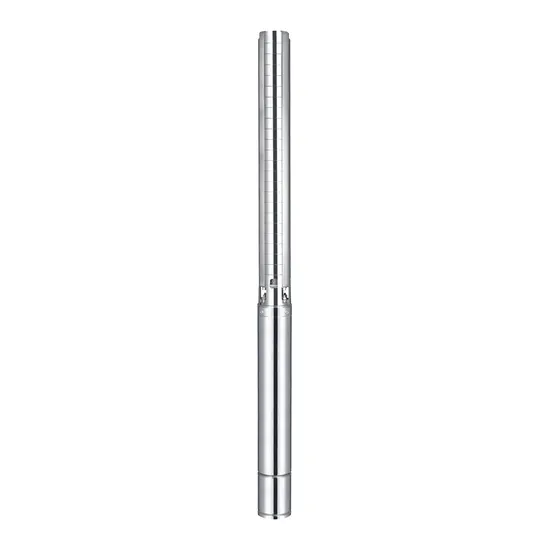

4sp Reliable Factory Stainless Steel Portable High Quality Pump Motor High Pressure Water Supply Farm Irrigation Agricultural Deep Well Submersible Water Pump

Product Description

Product Description
Application:
For water supply from wells or reservoirs.
For domestic civil and industrial applications .
For garden use and irrigation .
Component Construction :
Pump casing : AISI304SS
Outlet: AISI304SS
Inlet : AISI304SS
Strainer : AISI304SS
Diffuser : AISI304SS
Impeller : AISI304SS
Pump shaft: 45# steel
Shaft coupling : AISI304SS
Motor casing : AISI304SS/201SS
Mechanical seal : graphite-ceramic
Top chock : Cast-CU/Cast Iron
Motor shaft: AISI304SS
Bearing : C&U
Seal lubricant oil : 10# white oil
Operating Condition:
Maximum fluid temperature up to +35 ºC
Maximum sand content :0.25%
Maximum immersion: 120m
Minimum well diameter : 4 "
Motor and pump :
Rewindable motor
Single Phase :180V-240V /50Hz
Equip with start-up control box or digital auto-control box
Pumps are designed by casing stressed
Name dimension standards
Curve tolerance according to ISO9001
Detailed Photos
Spare parts
Product Parameters

NO	Model		Power		Delivery 2850 r/min
	1~	3~	Kw	Hp	Q	m³/h	0	0.3	0.5	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
	220V/240V	380V/415V				l/min	0	5	10	15	20	25	30	35	40	45	50
1	4SPM2-6	4SP2-6	0.25	0.33	H(m)		35	34	33	32	30	28	26	23	20	17	13
2	4SPM2-9	4SP2-9	0.37	0.5			52	51	50	48	45	42	38	34	30	25	19
3	4SPM2-13	4SP2-13	0.55	0.75			76	74	72	69	65	61	55	50	43	36	27
4	4SPM2-18	4SP2-18	0.75	1.0			105	103	100	95	90	84	77	69	60	50	38
5	4SPM2-20	4SP2-20	0.75	1.0			117	114	111	106	100	93	85	76	67	55	42
6	4SPM2-23	4SP2-23	1.1	1.5			134	131	127	122	115	107	98	88	77	64	48
7	4SPM2-26	4SP2-26	1.1	1.5			152	148	144	138	130	121	111	99	87	72	55
8	4SPM2-29	4SP2-29	1.5	2			169	166	161	153	145	135	124	111	97	80	61
9	4SPM2-33	4SP2-33	1.5	2			192	188	183	175	166	154	141	126	110	91	70
10	4SPM2-40	4SP2-40	2.2	3			233	228	222	212	201	186	170	153	134	111	84
11	4SPM2-48	4SP2-48	2.2	3			280	274	266	254	241	224	205	183	160	133	101
12	-	4SP2-55	3	4			321	314	305	291	276	256	234	210	184	152	116
13	-	4SP2-65	3	4			379	371	360	344	326	303	277	248	217	180	137

Company Profile
Our Advantages

Packaging & Shipping
FAQ Q1. Are you a factory?
A. Yes. Our company is a professional manufacturer.
Q2: Is OEM and ODM service available?
A: Of course. We have many years experience of OEM & ODM service.
Q3. How about your warranty?
A. We offer 1-year product life guarantee and a generous 1-year warranty on all purchases that begin with the bill of lading.
Q4. I am buying from another supplier, but need better service, would you match or beat the price I am paying?
A. We always feel we provide the best service and competitive prices. We would be more than happy to personalize a competitive quote for you, just email us.
Q5.What's the minimum order quantity for this product?
A. Our minimum order quantity is one full 20ft container.For the first time cooperation,costumer can place a trial order to check the quality.Please consult customer service for more details about the trial.

---
