rebound resilience elasticity tester

Product Description

Product Description
Application

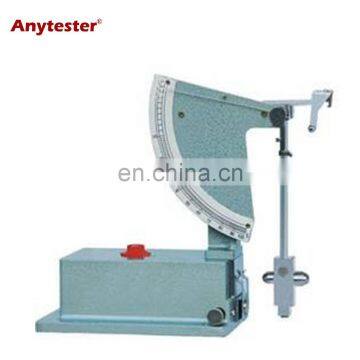

HY3130 Rebound Resilience Elasticity Tester is used for determining the rebound resilience of rubber the hardness of which lies between 30IRHD~85IRHD.
The resilience elasticity is defined as the ratio of the regained energy in relation to the applied energy. This ratio of energy corresponds with the quotient of the height of the resilience and the height of the drop of the pendulum.
Specification
Model
HY3130
Rebound head diameter
Φ15mm
Impact energy
0.5J
Specimen
Φ29mm×12.5mm
Impacting mass
0.34~0.35kg
Impact velocity
1.4~2m/s
Apparent strain energy density
351~463kJ/m3
Indication error
±0.5%
Dimensions
320mm× 200mm× 360mm
Weight
20kg
