Professional High Precision Hydraumatic Electric Metal Grinding Equipment for Heavy Duty Tasks 3 Axis Automatic Feed Grinder Grinding Machine

Product Description

Product Description
Discover a realm of unparalleled precision with the Transtar CSD-250ah/Ahr/Ahd Manual Grinding Machine, a remarkable innovation exclusively presented by Dongguan TranStar Machinery Co., Ltd. This cutting-edge grinding machine is meticulously engineered to uphold the pinnacle of quality and performance, ensuring seamless operation and delivering exceptional results for all your grinding demands.

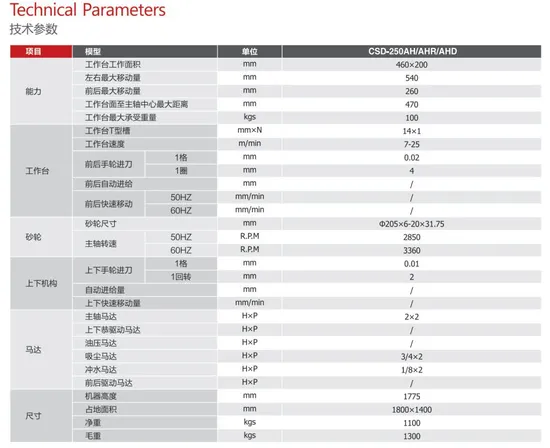

Product Parameters
The Transtar CSD-250ah/Ahr/Ahd Manual Grinding Machine from Dongguan TranStar Machinery Co., Ltd. showcases a robust design complemented by advanced features, meticulously tailored to deliver outstanding efficiency and unwavering reliability. Delve into its state-of-the-art specifications, designed to ensure consistent and top-tier performance in every grinding task.

Mountings	Specifications		Unit	CSD-250AH/ AHR/ AHD
Ability	Table Dimensions		mm	460×200
	Maximum forward and backward movement		mm	540
	Maximum left-right movement		mm	260
	Distance between spindle center and work surface		mm	470
	Maximum bearing weight of working table		kgs	100
Work Table	Table T-slots		mm×N	14×1
	Table speed		m/min	7-25
	Front and rear handwheel feed	a check	mm	0.02
		a round	mm	4
	Auto-supplying from front to back		mm	/
	High speed moving from frong toback	50HZ	m/min	/
		60HZ	m/min	/
Grinding Wheel	Grinding Wheel Size		mm	Φ205×6-20×31.75
	Speed of mainshaft	50HZ	R.P.M	2850
		60HZ	R.P.M	3360
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.01
		a turing round	mm	2
	Auto-supplying volumn		mm	/
	High-speed mouing dimension from up to down		mm/min	/
Motor	Spindle motor		H×P	2×2
	Drive motor up and down		H×P	/
	Drive motor up and down		H×P	/
	Vacuum motor		H×P	3/4×2
	Dust catching motor		H×P	1/8×2
	Back and front driving motor		H×P	/
Machine Size	Mechanical height		mm	1775
	Occupied area		mm	1800×1400
	Net weight		kgs	1100
	Gross Weight		kgs	1300

Product Details:Explore the intricate details of the Transtar CSD-250ah/Ahr/Ahd Manual Grinding Machine, a product of innovation by Dongguan TranStar Machinery Co., Ltd. This sophisticated machinery integrates cutting-edge technology with user-friendly features, establishing itself as an indispensable tool for precision grinding. Discover more about its unique characteristics and how it can transform your grinding operations. Expertly crafted to meet the diverse needs of various industries, this machine assures consistent, high-quality results, ensuring your projects are executed with maximum precision and excellence.

---
