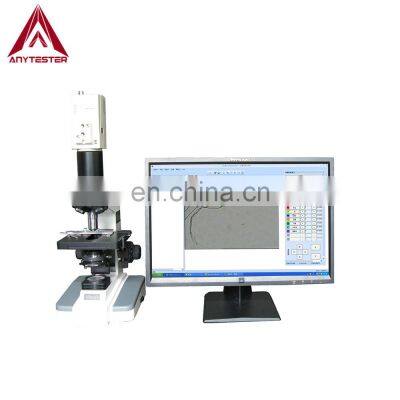

Product DescriptionHY0170 Series Fiber Fineness Analysis System consists of optical microscope, high resolution industrial camera and computer, to perform fiber diameter and cross-sectional area tests by using professional software. It also can determine the content of each fiber in the blended fiber. HY0170 series contains several different models since different microscope and different software.SpecificationModelHY0170Measuring range1~2000μmObjective lens4×, 10×, 20×System magnification25×Sample magnification100×, 250×, 500×Power supplyAC220V, 50HzWeight25kgDetails & FeaturesHY0170A Fineness type ★ Qualitative analysis, conforms to AATCC20-2011, FZ/T01057.3★ Used to determine the fiber diameter of animal fiber, chemical fiber, cotton and flax fiber, etc. Fast to test, easy to operate, with small human error★ Fiber diameter measurement, conforms to ISO137-1975, IWTO-8-2004, TWC-TM24-2009, GB/T 10685-2007★ With automatic test function of fiber diameter (optional), conforms to IWTO-47-2009, GB/T 20732-2006★ Measuring range: 1~2000μm★ Data and report output in EXCEL format, it also can be customized as customer’s requirementHY0170B Content type★Contains all the functions of HY0170A★It can determine fiber content of various blended products by analyzing single fiber morphology and measuring diameter★It conforms to ISO 17751, SN/T 1062, GB/T 16988, SN/T 0756, FZ/T30003, FZ/T 32004, etc.★Adopts professional analysis software, data and report output in EXCEL format★Provided with sample gallery of special animal fiber, chemical fiber, cotton and flax fiber, convenient to contrast for operator, improve the ability of identificationHY0170C Integrated type ★Contains all the functions of HY0170B★It can used to observe cross-sectional morphology of chemical fiber, profiled fiber and hollow fiber, and also can determine cross-sectional area ★It conforms to AATCC 20A-2011, FZ/T 01101-2008★It also can determine shape factor and hollow degree, conforms to FZ/T 50002-1991Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
