HRC50 Carbide Toroidal Milling Cutter with Altin Coating

Product Description

Product Description
HRC55 Corner Raduis Long End Mills , 4 Cutting Flutes

Shank diameter	4-12mm
Cutter diameter	1-12mm
Total length	50-100mm
Cutter length	3-55mm
R	0.2-1
Hardness	45/55/65 HRC
Flute	2/3/4 Flute
Helix Angle	30/45/55 Degree
Workpiece material	Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal,Brass,Bronze
Material	Tungsten steel
Processed Material	Metal
Flute	Four Flutes
Customized support	OEM, ODM, OBM

Product Show
Product Specification
The following Specification for your refer, We also provide the OEM or ODM service.

order number	cutting	Flute	Shank	Corner	A.0.L
	d	l	D	R Corner	L
1×3×4D×R0.2×50L×4F	1	3	4	R0.2	50
1×3×4D×R0.3×50L×4F	1	3	4	R0.3	50
1.5×3×4D×R0.2×50L×4F	1.5	4	4	R0.2	50
1.5×3×4D×R0.3×50L×4F	1.5	4	4	R0.3	50
2×6×4D×R0.2×50L×4F	2	6	4	R0.2	50
2×6×4D×R0.3×50L×4F	2	6	4	R0.3	50
2.5×8×4D×R0.2×50L×4F	2.5	6	4	R0.2	50
2.5×8×4D×R0.5×50L×4F	2.5	6	4	R0.5	50
3×8×3D×R0.3×50L×4F	3	8	3	R0.3	50
3×8×3D×R0.5×50L×4F	3	8	3	R0.5	50
3×8×4D×R0.3×50L×4F	3	8	4	R0.3	50
3×8×4D×R0.5×50L×4F	3	8	4	R0.5	50
4×10×4D×R0.5×50L×4F	4	10	4	R0.5	50
4×10×4D×R1.0×50L×4F	4	10	4	R1.0	50
4×10×6D×R0.5×50L×4F	4	10	6	R0.5	50
4×10×6D×R1.0×50L×4F	4	10	6	R1.0	50
5×13×6D×R0.5×50L×4F	5	13	6	R0.5	50
5×13×6D×R1.0×50L×4F	5	13	6	R1.0	50
6×15×6D×R0.5×50L×4F	6	15	6	R0.5	50
6×15×6D×R1.0×50L×4F	6	15	6	R1.0	50
8×20×8D×R0.5×60L×4F	8	20	8	R0.5	60
8×20×8D×R1.0×60L×4F	8	20	8	R1.0	60
8×20×8D×R1.5×60L×4F	8	20	8	R1.5	60
10×25×10D×R0.5×75L×4F	10	25	10	R0.5	75
10×25×10D×R1.0×75L×4F	10	25	10	R1.0	75
10×25×10D×R1.5×75L×4F	10	25	10	R1.5	75
10×25×10D×R2.0×75L×4F	10	25	10	R2.0	75
12×30×12D×R0.5×75L×4F	12	30	12	R0.5	75
12×30×12D×R1.0×75L×4F	12	30	12	R1.0	75
12×30×12D×R1.5×75L×4F	12	30	12	R1.5	75
12×30×12D×R2.0×75L×4F	12	30	12	R2.0	75
3×8×3D×R0.3×75L×4F	3	8	3	R0.3	75
3×8×3D×R0.5×75L×4F	3	8	3	R0.5	75
3×8×4D×R0.5×75L×4F	3	8	4	R0.5	75
3×8×4D×R1.0×75L×4F	3	8	4	R1.0	75
4×10×4D×R0.5×75L×4F	4	10	4	R0.5	75
4×10×4D×R1.0×75L×4F	4	10	4	R1.0	75
4×10×6D×R0.5×75L×4F	4	10	6	R0.5	75
4×10×6D×R1.0×75L×4F	4	10	6	R1.0	75
5×13×6D×R0.5×75L×4F	5	13	6	R0.5	75
5×13×6D×R1.0×75L×4F	5	13	6	R1.0	75
6×15×6D×R0.5×75L×4F	6	15	6	R0.5	75
6×15×6D×R1.0×75L×4F	6	15	6	R1.0	75
8×20×8D×R0.5×100L×4F	8	20	8	R0.5	100
8×20×8D×R1.0×100L×4F	8	20	8	R1.0	100
8×20×8D×R1.5×100L×4F	8	20	8	R1.5	100
10×25×10D×R0.5×100L×4F	10	25	10	R0.5	100
10×25×10D×R1.0×100L×4F	10	25	10	R1.0	100
10×25×10D×R1.5×100L×4F	10	25	10	R1.5	100
10×25×10D×R2.0×100L×4F	10	25	10	R2.0	100
12×30×12D×R0.5×100L×4F	12	30	12	R0.5	100
12×30×12D×R1.0×100L×4F	12	30	12	R1.0	100
12×30×12D×R1.5×100L×4F	12	30	12	R1.5	100
12×30×12D×R2.0×100L×4F	12	30	12	R2.0	100

Packaging & Shipping
Package and shipping details

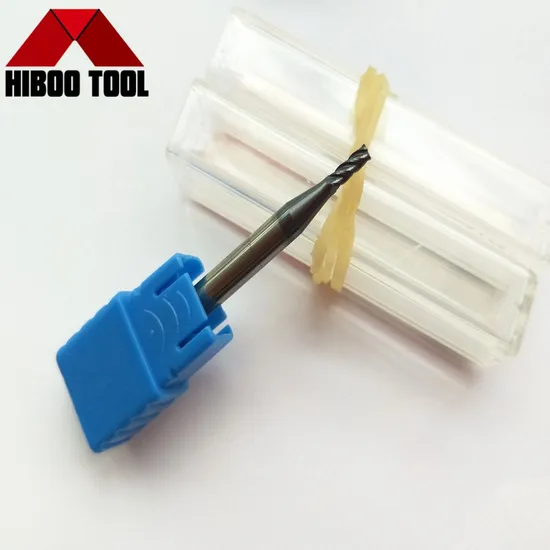

Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.

Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.

Payment Term
T/T ,Western Union , MoneyGram,L/C
Company Profile
Changzhou Hiboo Tools Co., Ltd is a high-tech enterprise with all vitality, potential and comprehensive Strength. The company located in Changzhou, Jiangsu, China, a unique place near by Shanghai.We are Gold Supplier who specialized in producting and exporting Carbide End Mills, Drills, Inserts, Reamers and more other customized cutting tools.The efficient workshop and Imported 5AXIS grind machines run by skillful operators. The strict inspection standards to make sure each cutter is inspected by Zoller Measuring and Inspecting Machine. Now, Our monthly output up to 50000pcs of carbide end mills, drills ect, More than 20000 cutters are in stock which meet your urgent requirements. Enough Raw Materials in stock to keep the price stability.
