US$3,000.00-6,500.00
|
1 Set
(MOQ)
|
Basic Info.
Motive Force
Electric power
Performance
Efficient Filtration
Power
110V-480V, 60Hz/50Hz
Desalting Rate
More Than 97%
Option 4
Anti-Scale System
Transport Package
Wooden Case
Production Capacity
150 Sets/ Month
Product Description

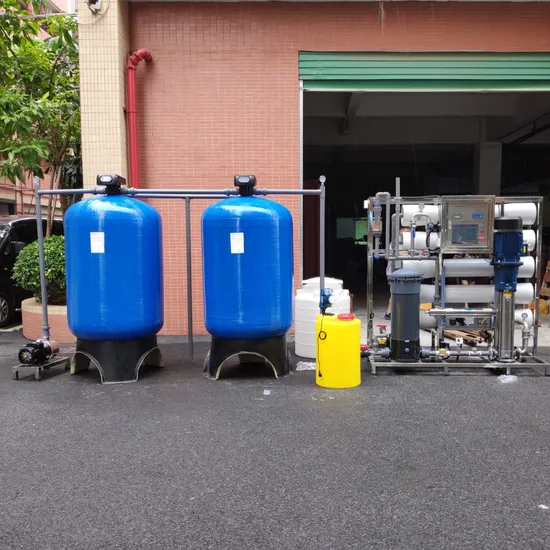

5000L/H Brackish Water Purification Machine Bottle Drinking Water RO Desalination System Price Industrial Borehole Pure Water Filter Reverse Osmosis Treatment
Product DescriptionReverse Osmosis System is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium.Reverse Osmosis System can remove large particle, colloid, organic impurity, heavy metal ion, bacteria from water, and it can also remove more than 97% dissolved salt and solid.
1.Electricity supply:110v-480v, 50hz or 60hz,3 phases |
2.Capacity:500L/H or customized from 500L/H to 100Ton/H |
3.Membranes Brands:Vontron |
4.Pumps: a) raw/feed water pump of CNP Brand; b) CIP Washing pump of CNP Brand; c) high pressure pump of CNP Brand; d) SEKO Brand anti-scale dosing pumps. UV sterilizer/Ozone generator, CIP washing system, anti-scale dosing system is for optional |
Specified configurationRO system(Each part is optional, for reference) |
Item | Material/Model | Brand | Function |
Raw water pump | SS304/SS316 | Lingxiao/CNP | Provide pressure for raw water |
Quartz sand filter | FRP/SUS304 /SS316 | kaiyuan, China | Get rid of turbidity, suspended matter, colloid, etc. |
Activated carbon filter | FRP/SUS304 /SS316 | kaiyuan, China | Remove the color, free chloride, organic matter, absorb odor, smell, etc... to make clear water |
Anti-scale chemical dosing system (optional) | FRP/SUS304 /SS316 | kaiyuan, China | Remove Calcium ion(Ca2+) and magnesium ion(Mg2+), removing hardness from water. |
Security filter | PVC or SUS304 1mircon/5mircon | kaiyuan, China | Block impurities greater than 5micron(1micron) |
High pressure pump | SS304/SS316 | Lingxiao/CNP | Provide pressure for water into RO membrane |
UV Sterilzier(Optional) | 0.5T/H | China | Kill 99% bacterial (For drinking directly) |
Ozone generator (Optional) | OZ-3G | China | Kill 99%bacterial and keep 2hours.(For making bottled water) |
CIP Washing system (optional) | including washing tank and pump | China | Membranes' washing and maintenance |
Solenoid valves, gauges,switch.. | Cooper/SUS-304 /SUS-316 | China | To protect the machine under operation |
Electronic control system | PLC Program control system or PC Program control system | kaiyuan, China | including Water conductivity monitor, AC contactor, Air switch, indicator light, knob switch, electrical miscellaneous... PH meter and thermometer is optional. |
Detailed PhotosWater Pumps---Raw Water Pumps, CIP washing pumps and High Pressure Pumps: 1.Brand: We can offer standard CNP brand
2.Material: Can be SUS-304 for fresh water purification, or SUS-316 for salty/brackish water desalination.
3.Name and Function:
Raw water pump to provide pressure for pre-treatment part.
High pressure pump to provide pressure for Ro membranes.
CIP Washing pump for membranes maintenance.
Pre-treatment filters:1--The quartz sand filter: to remove the suspend solid and reduce the turbidity of outlet water . 2--The activated carbon filter: to remove color, odor, residual chlorine from the raw water. Automatic control valve: It can automatically complete the fast rinsing and backwashing of filter materials, and then automatically turn to filter (normal operation) by setting the time on the program | |
PLC panel--Anti-rusty steel material control box1--Company name and logo design: customize as your requirements;
2--Conductivity meter: display the conductivity of pure water 3--Flow meter : display dense water and pure water flow.
4--Pressure meter: display inlet and outlet pressure of water inlet RO system.The inner electricity side, we have frequency inverter(if necessary), AC contactors, Thermal relay, Fuse box, Air switch, Indicator light, Knob switch, Power switch, Intermediate relay, Sound and light alarm, electrical miscellaneous items, etc. But if you want PLC control box, please check details as followed.RO membraneModel: BW30-400IG
Quantity:5 pcs
Brand: USA (Top in the world,with high quality and good reputation)
Model: ULP31-8040
Quantity:5 pcsBrand:VONTRON, made in China
The service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.
