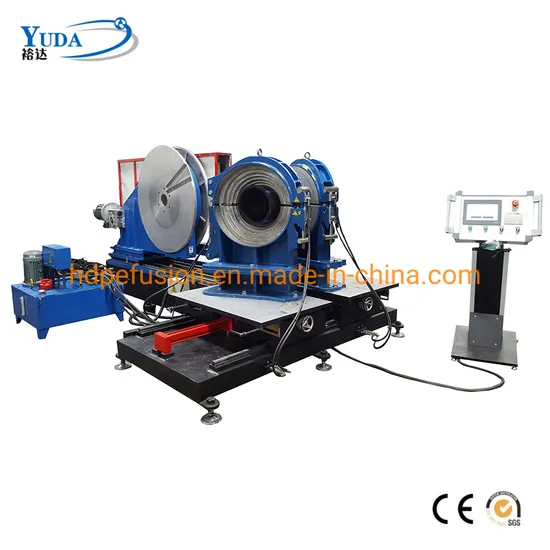

Multi-Angle PE Fitting Welding Machine

Product Description

Multi-angle PE Fitting Welding Machine
Keywords:Butt Welding Machine;butt fusion machine, butt fusion welding machine;hdpe pipe welding machine , hdpe butt welding machine, HDPE Butt Welder, PE Welding Machine , PE pipe welding machine, Welding machine hdpe pipe, HDPE Pipe Fusion Machines;Fusion Welding Machine,Full-Automatic fitting weldinig machine, Product Description
1.Suitable for fabricating elbow, tee, cross and Y shape (45° and 60° ) fittings of PE,PP,PVDF in workshop. Also used to lengthen the injection moulded fitting , make integrated fitting and weld straight pipe and fitting and so on.
2. Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
3. Removable PTFE coated heating plate.
4. Milling plate movement adopts safety switch control to avoid unexpected start.
5. Heating plate and milling plate adopt liner movement structure .
6. Low Starting pressure and high reliable seal structure
7. Separate two-channel timer shows time in soaking and cooling phases. When timing is over, it alarms and convenient for users
8. Reliable performance ,easy control.
Optional Parts:
1.Special clamps for welding flange stub
2. Special clamps for short spigot fitting
3.Special clamps for welding Y shape (45° and 60°) fittings
4. Data Logger and Printer

Detailed Photos

Product Parameters

Model	RGH-A450	RGH-A630	RGH-A800
Welding range (mm)	200,225,250,280,315,355, 400,450	315,355,400,450,500, 560,630	500, 560,630,710,800
Welding Type	0~90°Elbow,Tee,Cross. 45°and 60 °Y shape ( optional parts should be used)
Heating Plate Max. Temp	270ºC	270ºC	270ºC
Temp. Deviation in surface	<±7°	<±7°	<±10°
Working voltage	380V ,50Hz	380V ,50Hz	380V ,50Hz
Ambient Temperature	-10° ~ 45°	-10° ~ 45°	-10° ~ 45°
Heating Plate Power	12 KW	22 KW	40 KW
Planing Tool Power	2.2 KW	3 KW	3KW
Hydraulic unit Power	3 KW	4 KW	4 KW
Total Power	17.2 KW	29 KW	47 KW
Weight	2496KGS	4470 KGS	7360 KGS

Certifications
CE & ISO9001 & SGS
Packaging & Shipping
Production Process

Construction Site
