| US$8,593.20-12,399.10 | 1 Piece (MOQ) |

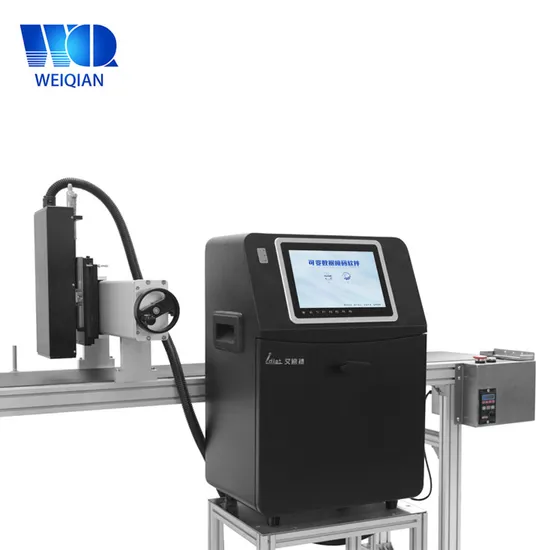

| Product model | Inkjet Coding Machine --W5000 |
Nozzle parameters | Nozzle type: all imported industrial piezoelectric nozzles Nozzle material: all steel Maximum printing width: 54.1mm Number of nozzles: 1280 Nozzle row spacing: 0.55mm Nozzle spacing: about 0.1693mm/column Ink drop: 7~35Pl variable ink drop Nozzle rows: 4 rows |
| Display screen | Size:10.1 inch |
| Touch screen | Capacitive touch screen |
Hardware interface | USB2.0 interface RS232 interface Curing light interface Encoder interface Flip-flop interface |
| Defend degree | IP54 |
Working environment | Working temperature: 0 ºC-45 ºC (best 10 ºC to 32 ºC) Humidity:15%-75% Protection requirements: good grounding |
Size | Structure: stainless steel housing Power supply: AC220V/50HZ System power consumption: maximum power consumption 120W Equipment weight: about 30kg Machine size: 630*450*300mm Nozzle size: 360*125*50mm |
Technical specification | Nozzle life: 30 billion times of ink ejection Printing distance: 1mm-5mm, best 1-3mm Printing content length: 1.3m Printing speed: 0-80 m/min (ink volume 1) (decided by factors such as material/resolution/environment/platform) Longitudinal accuracy of nozzle: 600dpi Horizontal accuracy of print head: 600dpi-1200dpi Movement method: from left to right Printing direction: adjustable forward, reverse, vertical downward; adjustable up and down in the program, flip left and right Curing type: LED-UV curing |
Features | Font library support: built-in a variety of commonly used font libraries, in addition to support font import function, users can import their own fonts. Input method: support Pinyin input method, handwriting input method, etc. Secondary development: the software provides interfaces to support secondary development Material type: flat materials such as aluminum plate, ceramic tile, glass, wood, metal sheet, acrylic plate, plastic, leather,Materials, bags, cartons and etc. Applicable products: such as mobile phone displays, beverage bottle caps, food packaging bags, medicine boxes, plastic steel doors and windows, aluminum alloys,Gold, batteries, plastic pipes, steel plates, circuit boards, chips, woven bags, eggs, brake pads, mobile phone shell cartons, motors, transformers, water meter inner plates, gypsum boards, PCB circuit boards, outer packaging, etc. Printing content: The system supports printing one-dimensional bar codes, two-dimensional bar codes, drug supervision codes, traceability codes, databases, Variable text, picture, logo, date, time, batch number, class and serial number, etc. And can be smart lively design the layout, content, and printing position. |
