Product Details
Product Description
Product Description

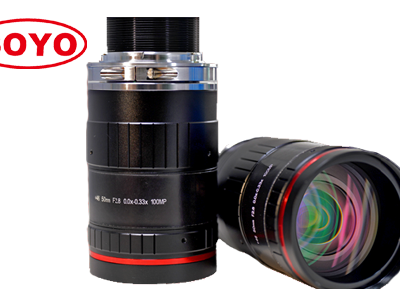

100 Megapixel Lenses 3.1μm 50mm <-0.44% Low Distortion Machine Vision Factory Automation Positioning Measurement China Camera Optical CCTV Line Scan F V Mount Optical Lens
Large format: Φ46
Low distortion : Low TV distortion <-0.44%
High resolution : 3.1μm 100 Megapixel top high
Application : Automation, machine vision, medical, life science, measurement.
Model
| SLS5028F/F-100M
|
Format
| Φ46
|
Resolution
| 100Megapixel ( Pixel size 3.1μm )
|
Focal Length
| 50mm
|
Aperture (Close)
| F2.8~22 Manual iris
|
FOV
| 45*38*26
|
Distortion TV
| -0.44% ; -0.35% @ 200~400mm MOD
|
MOD FOV
| -106.56 *-70.9258mm
|
M.O.D
| 0.15m
|
Filter size
| M40.5*0.5
|
Size
| Φ58*90.88mm
|
Mount
| F / V ( optional )
|
Weight
| 566g
|
Temperature
| -10~50°C
|
(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
