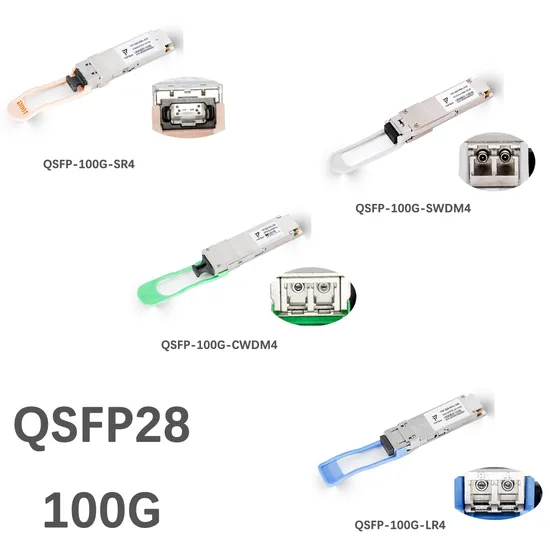

Compatible Qsfp28 100GB Sr4 850nm MPO Lr4 10km 20km Er4 40km Zr4 80km 1310nm Sm Duplex/Dual LC Ddm Qsfp 100g Optical Transceiver

Product Description

Compatible Qsfp28 100GB SR4 850nm MPO LR4 10km 20km ER4 40km ZR4 80km SM Duplex/Dual LC DDM Qsfp28 Optical Transceiver

Technical Parameters	Descriptions	Technical Parameters	Descriptions
Model Number	YXF-Q28	Interface	MPO, LC
Fiber type	MMF, SMF	Laser/Detector	VCSEL/RECML
Form Factor	Duplex QSFP28	DDM	Yes
Data Rate	100Gbps	Power Supply	3.3V
Wavelength	850nm, 1310nm	Warranty	1Year
Distance	100m, 10km, 20km, 40km, 80km	Temperature	0~70°C
Selling Units	pcs	Certificate	CE,ROHS,FCC,ISO9001,SGS

Part Number	Data Rate	Distance	Wavelength	Output Power	Sensitivity	Remark
YXF-100G	100Gbps	MM 100m (OM4)	850nm	-8.4 ~ +2.4dBm	-10.3dBm	QSFP28-100G-SR4
YXF-100G	100Gbps	SM 10km	1310nm	-4.3 ~ +4.5dBm	-10.6dBm	QSFP28-100G-LR4
YXF-100G	100Gbps	SM 10km	1310nm	-4.3 ~ +4.5dBm	-10.6dBm	QSFP28 100G-LR4-Ethernet
YXF-100G	100Gbps	SM 40km	1310nm	-2.9 ~ +4.5dBm	-16.9dBm	QSFP28 100G-ER4
YXF-100G	100Gbps	SM 2km	1310nm	-6.5 ~ +2.5dBm	-11.5dBm	QSFP28 100G-CWDM4

Applications: 100G Ethernet &100GBASE-SR4/LR4/ER4/ZR4 ITU-T OTU4
Functional Diagram:
Q:Are you factory or trading company?
A:We are a manufacturer.
Q:What is your main products?
A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue

Q:Can I get a lower price? Any discount?
A:Yes, price could be negotiated based on the quantity. In some festivals, we will also have promotional plans, please pay
attention to our store activities, or contact business manager
Q: Do you provide samples? Is it free or extra?
A: Yes, but we need to charge for samples, we will return sample fee in the later order.
Q:What is your MOQ and the lead time?
A: we don't have MOQ, 1 samples is available. Normally lead time is 1-3 working days for samples and 3-5 days for mass.
Q: How about shipping?
A: For sample, about 5-7 days by fast delivery ; For Mass order, bout 15-25 days by sea, air, train shipping.
Q:What is your after-sales service? How about the warranty?
A:All our customers can enjoy the after-sales service for 1 years warranty and lifetime technical support.
Q:What kinds of customized choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q:Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers
also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.

---
