Touch Screen Home Security IPS HD Interphone 7" Video Door Phone Intercom

Product Description

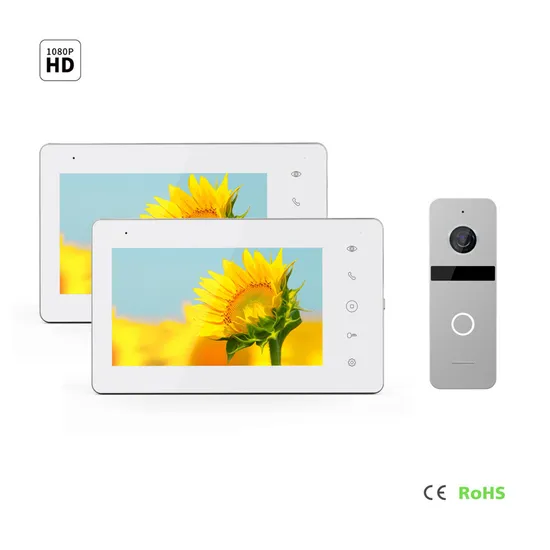

IPS Touch Screen Home Security Memory 7" HD Video Door Phone Intercom
Description:-Monitors:1. 7 inches IPS HD Touch screen 2. Hands free3. Touch keys4. Surface-mounted
5. Metal case & Vandal-proof 6. 4 wires / Cat-5 or Cat-6 connection7. Supports 4 video channels8. Supports maximum length of line connection: 100m9. Power Supply: DC15V,0.8A / AC100-240V 50/60Hz (Optional) 10.Power consumption: 9W(Max),2.5W(standby)11. TFT resolution: 1024*60012. Dimension: 216*129*10mm
Doorbells:-1. 1/3" High-Definition color camera2. Resolution: 1080P 3. With night vision4. Metal case5. 100° / 155° View angle (Optional)6. Protection Standard: IP66.7. 4 wires connection8. Surface/angled construction9 Supports lock control10. Operating temperature: - 30 ºC to + 60ºC11. Power: 10 - 15V12.Dimension: 133*46*20mm Functions:-Monitors:1. Lock control / Broadcast / Calendar / Alarm clock2. Capture over 100pcs images with internal flash3. Monitor doorbell or CCTV cameras4. Make calls between monitors5. Monitor listening to another monitor6. DVR function, with both Video and audio7. Answer machine function8. Auto take pictures from doorbell camera9. Supports Message leave10 Can take Images or record video from doorbell, even you are talking with visitor11.Multimedia manager12.Photo frame13.Outdoor panel unlock release14.Indoor monitor unlock releaseType of signal: CVBS/AHD/TVI/CVI(up to 1080P)
Max. supports:1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras2).1 outdoor doorbell+4 indoor monitors+3 CCTV camerasDoorbells:-1). Surface/angled construction2). Supports lock control Specification:-Monitors:

Screen	IPS HD Touch screen
Screen size	7''
Outdoor panel unlock release	Supports
Indoor monitor unlock release	Supports
Definition	1024*600
Type of signal	CVBS/AHD/TVI/CVI(up to 1080P)
Connection	4 wires / Cat-5
Maximum length of line connection	100m
Video channels quantity	4
Additional monitors quantity	3
Memory block connection	Build in card-reader for micro SD card
Image capture	Supports
DVR with both Video & voice	Supports
Power	DC15V,0.8A / AC100-240V 50/60Hz (Optional)
Dimension	216*129*10mm

Doorbells:

Subscribers quantity	1
Camera	1/3'' Color CMOS
Angle of view	100° / 155° (Optional)
Protection Standard	IP66
Type of signal	CVBS/AHD/TVI/CVI
Resolution	1080P
Construction	Surface/Angled mounting
Operating temperature	- 30 ºC to + 60ºC
Connection	4 wires
Lock control	Supports
Power	DC10-15V
Dimension	133*46*20mm

All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality. website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.

Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.

Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.

---
