Tension Range 2.0-10000 Mechanical Tensioner

Product Description

Product Description
Tension control is a key part that produces adjustable tension during winding to bestow enameled wire with appropriate tension during winding and guarantee reasonable firmness of wire coil wound and therefore the consistence of technical indexes of wire coil.
Mechanical tensioner is a key component of the winding machine that generates adjustable tension during winding, allowing the enameled wire to be wound with appropriate tension, thereby making the wound coil elastic and tight appropriately.

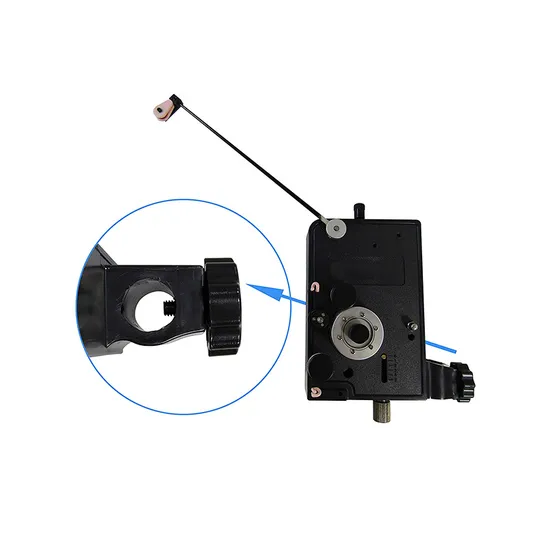

Detailed Photos
Notes for tensioner use:
1. When the working Angle of the tension rod is the same as that of the static installation, or when the tension rod sags to 90 degrees after starting to work, please be sure to readjust the tension again, so as to avoid abnormal wear and reduce the service life of the tensioner components.
2. When the tensioner is in normal use, please check whether there is any residual enameled wire break on the damping wheel when installing or replacing the enameled wire. Please be sure to remove it, otherwise it will be involved in the damping wheel when starting again, causing irregular changes in tension.


Product Parameters

Wire range(mm)	Tension range(g)
0.02-0.04	2.0-11
0.03-0.06	7.0-30
0.04-0.08	9.0-50
0.03-0.08	6.0-50
0.06-0.13	20-130
0.08-0.16	40-200
0.16-0.25	90-500
0.12-0.40	70-600
0.20-0.60	200-2000
0.50-1.20	1000-5000
0.60-2.00	2000-10000

Product advantages
1: Ensure consistency between the electrical performance of the coil and the technical specifications of the production process.
2: The required tension can be controlled with high precision, improving the appearance of the coil and making it flat and full.
3: Can save enameled wire.
4: Reduce friction and change the enameled wire from static friction to dynamic friction, better protecting the insulation layer of the enameled wire.
5: Facilitate product design changes.
Suggestions
How does the tensioner help the product?
There is a great difference between using tensioner and not using tensioner on winding machine. The following advantages are summarized for reference only
1: Ensure the consistency of coil electrical performance and production process technical indicators;
2: The required tension can be freely controlled with high precision, improve the appearance of the coil, make the coil smooth and full.
3: can save enameled wire (according to a single product may be small, if calculated according to the annual output, this number is amazing)
4: Reduce friction, let the enameled wire from static friction to dynamic friction, better protect the insulation layer of enameled wire
5: to facilitate the design of the product change.
Our Advantages
Henan Windoo Industry CO., LTD has been a professional manufacturer and exporter of magnet winding wire since 2008, which is located at Zhengzhou city in the middle part of China with whose products are mainly usage for the production field of transformers, motors, air-core coils, automotive electrical appliances, home appliances, voice coils and so on.
Our basic products include enameled aluminum wires, enameled copper wires, enameled copper-clad aluminum wires, self-bonding copper wire, fiberglass aluminum wire, paper covered aluminum wire, silver-plated copper wires and we expand the horizons to service coiling winding machines to meet different client's purchasing need since 2019 year.

Packaging & Shipping
Transport:
We support air, sea and land transportation.
Our packing is foam + carton. Ensure the safe transportation of products.
Mechanical Coil Winding Tensioner 1 set/box with package by foam and carton box or upon your request
FAQ
Q1. How soon can I receive the quotation?
We will send you the quotation within 24 hours after receiving the inquiry.
Q2. Could you give me a sample?
Samples are available on request.

Q3. How soon can I get the sample and quality?
It usually takes seven days to produce the sample. Bulk orders usually take 7-15 days. If something urgent comes up, the delivery time may be postponed

Q4. How about the delivery method?
Goods are usually shipped by air or sea via DHL,UPS,FEDEX, EMS. If you have a warehouse in China, we can also deliver the goods to your warehouse.

Q5. What are your payment terms?
Wire transfer,50% down payment,50% balance. Other payment methods such as Paypal, Western Union, L/C can be negotiated.
If you are interested in our textile tension control Coil Winding tension controller, Mechanical Coil Winding Tensioner, welcome to contact us .

---
