Top Quality Agricultural Plow Tractor Mouldboard Ridging Plough Hydraulic Reversible Series

Product Description

Top quality agricultural plow tractor mouldboard ridging plough Hydraulic reversible series

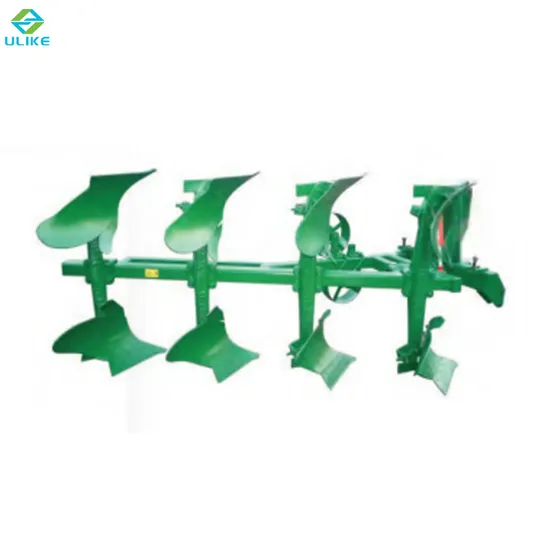

Detailed Photos
This series is fully suspended plow plow for soil, sandy loam area foxglove upland farming. lt has a simple structure, large farming adaptation range, good quality work, smooth surface, good pulverizer performance, Ditches and other small features.

Applicable for dry sand soil. With whole hanging, simple structure,wide application, good working, etc.
Product Parameters

Furrow Plough Series Specification
Type	IL-220	IL-320	IL-420	IL-520	IL-620	IL-225	IL-325	IL-425	IL-525	IL-625	IL-725
Single ploughbody working widt (mm)	200					250
Max. working width (mm)	400	600	800	1000	1200	500	750	1000	1250	1500	1750
Working depth	18-25
Matched power (hp)	15-24	25-35	30-35	40-50	55-70	25-35	30-45	40-50	55-80	80-100	90-120
Weight (kg)	68	122	148	185	230	120	158	195	255	340	390
Linkage	Standard three point mounted

Furrow Plough Series Specification
Type	lL-227	lL-327	lL-427	lL-527	lL-627	lL-727	lL-230	lL-330	lL-430	lL-530	lL-630
Single ploughbody working widt (mm)	270						300
Max. working width (mm)	540	810	1080	1350	1620	1890	600	900	1200	1500	1800
Working depth	150-240						200-350
Matched power (hp)	25-35	30-45	40-50	55-80	80-100	90-120	40-50	500-80	60-80	90-120	130-160
Weight (kg)	120	158	195	255	340	390	195	260	360	470	590
Linkage	Standard three point mounted

Furrow Plough Series Specification
Type	lL-235	IL-335	IL-435	IL-535	lL-635
Single ploughbody working widt (mm)	350
Max. working width (mm)	700	1050	1400	1750	2100
Working depth	200-350
Matched power (hp)	40-50	55-80	60-80	90-120	130-160
Weight (kg)	195	320	410	550	690
Linkage	Standard three point mounted

Hydranlic Furrow Plough
Type	1LYF-325	1LYF-425	1LYF-525	1LYF-625	1LYF-725	1LYF-327	1LYF-427	1LYF-527	1LYF-627	1LYF-727
Single ploughbody working widt (mm)	250					270
Max. working width (mm)	750	1000	1250	1500	1750	810	1080	1350	1620	1890
Max.Working depth	150-240	150-240	150-240	150-240	150-240	150-240	150-240	150-240	150-240	150-240
Matched power (hp)	30-50	40-80	55-90	80-120	90-140	30-50	40-80	55-90	80-120	90-140
Weight (kg)	420	520	720	840	980	420	520	720	840	980
Linkage	Standard three point mounted

Hydranlic Furrow Plough
Type	ILYF-230	ILYF-330	ILYF-430	ILYF-530	ILYF-630	ILYF-730	ILYF-235	ILYF-335	ILYF-435	ILYF-535	ILYF-635	ILYF-735
Single ploughbody working widt (mm)	300						350
Max. working width (mm)	600	900	1200	1500	1800	2100	700	1050	1400	1750	2100	2450
Max.Working depth	200-300						200-350
Matched power (hp)	40-50	50-80	60-80	90-120	130-160	160-200	40-50	50-80	80-100	120	130-155	160-200
Weight (kg)	480	630	880	1200	1500	1850	480	650	880	1200	1550	1900
Linkage	Standard three point mounted

Company Profile



Founded in 2006, HENAN ULIKE INDUSTRY Co., Ltd. is a top package equipment solution provider in China, especially for agricultural machinery parts and so onWe Ulike industry are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over Fifteen years' experience in the field of Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery and accompanying to fulfill strictly ISO 9001: 2008 standard, we had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We Ulike industry participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Ulike industry has been often praised by our customers and has taken great reputation as a trustworthy project partner. Ulike Inductry believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world. After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4. Fast parts deliver and quick reply for any feedback .

FAQ
1. How many days it need to deliver farm tractor?
We have more than 15 years experience to produce farm tractor and implements,as usual,we only need 15- 30 days to finsh it.
2. Why should I choose your farm tractor?
We are a professional manufacturer of agricultural machinery for more than 15 years,we attended many national projects and the customers are satisfied with our quality.
3. What are your payment terms?
T/T, L/C, Western Union, Moneygram, Paypal or other.
4. Do you have CE and ISO9001 certification?
Yes,all of our product have passed CE and ISO9001 certification.
5. How long is your product warranty?
Our warranty period is one year.

---
