Concrete Texture/Cure Machine Mc4000 for Concrete Spreader and Concrete Finisher

Product Description

MC4000 Concrete Slipform Paver
Features of System
Electrohydraulic Control System
The system is simple and reliable by using CAN bus communication technology
The big LCD clearly displays working situation and trouble
The hydraulic system has the advantages of energy saving and low temperature by using Sauer brand load sense variable pumps
The valve manifolds are compact and convenient maintenance and repair by using Hydra force cartridge valves
The hydraulic vibrators are made by WYCO Company

Other Working Mechanism
The contractors can reduce positioning time with all-track steering and hydraulically-driven offset mold
The paver may be used on any spots by using side working unit.
The feeding auger can rotate, tilt and shift to make its material exit end center the mold

Technical Data
Engine: Quanjiao QC4102G or other brand
Vibrator: Hydraulic-driving and made by Wyco
Dimension (cm): L500×W216×H255
Weight: 5500kg
Pouring Capacity (cm): W200×H90cm
Pouring radius: 60cm
Pouring Speed: 0~12m/min

Automatic Control System
Automatic control on steering and leveling by precise electronic-over-hydraulic sensors; CAN communication between sensor and controller;

Hydraulic Vibrators
Type: Hydraulic powered, motor in head, variable speed, independently controlled
Quantity: Four hydraulic circuits and two hydraulic vibrators with mounts;

Track System
Type: Three hydraulic powered track

Technical Documents & Product Certificate	One set of technical documents in English or in Chinese & English including operator's manual and parts book for the machine, operator's manual and parts book for the engine, and one set of manufacturer's certificate shall be shipped with the good.
Commissioning and training	Upon request, we shall send our service engineer for commissioning and training of your operator and other staff for one week. Buyer will provide international ticket, suitable accommodation, food, local transportation and USD80 per day salary to our service engineer.
Guarantee:	The Seller promise that the good thereof is made of the best materials with first class workmanship, brand new and unused, and complies in all respects with the quality, performance and specifications stipulated in the contract. When the good is normally installed, operated and repaired, the limited warranty will be 12 months or 1,500 operational hours which occurs first from the date of delivery from factory of China

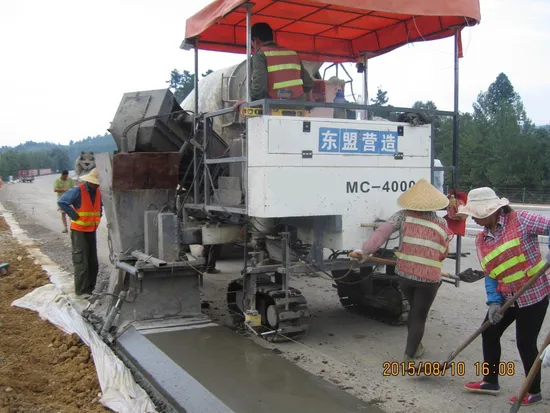

Project sites of our slipform pavers
Note: Please contact us for more information you may need.

---
