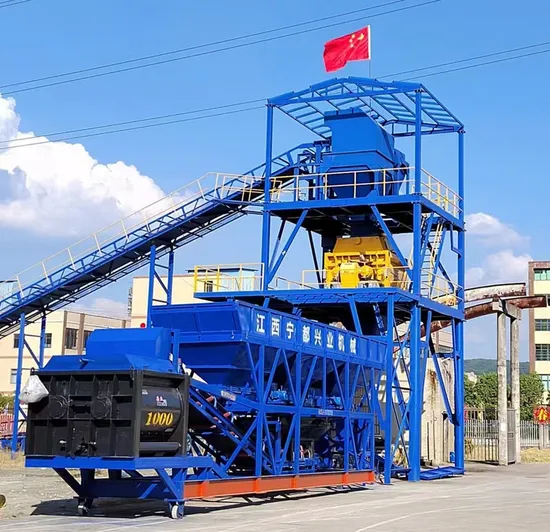

Hzs60 Factory Supply Mixer 60m3/H Portable Mobile Concrete Batching Plant for Sale

Product Description

Hzs60 Factory Supply Mixer Price 60m3/H Portable Mobile Concrete Batching Plant for Sale
Product Description

HZS series is a new kind of compulsory volumetric concrete batching plant. It includes JS concrete mixer, PLD concrete matching machine, cement silo, conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete batching plant to sell high quality concrete to different buyers. Product Details


Ready mixed Concrete Batching Plants consists
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.
A concrete mixing plant is mainly composed of the following parts:

Material Storage System

- Aggregate Bins: They are used to store aggregates such as sand and stones. Usually, there are multiple compartments, which can separately store aggregates of different specifications.
- Powder Bins: Generally, they are cylindrical silos, used to store powders such as cement and fly ash. They are often equipped with devices like level indicators to monitor the material level.
- Water Tank: It stores the water required for mixing concrete. Some also have storage tanks for admixtures.

Material Conveying System

- Belt Conveyor: It is commonly used to convey aggregates from the aggregate bins to the batching device above the mixing main unit. It has the characteristics of large conveying capacity and stable operation.
- Screw Conveyor: It is mainly used to convey powders from the powder bins to the measuring device. The powders are pushed by the rotating screw blades.
- Water Pump: It conveys the water in the water tank to the mixing main unit. Some mixing plants also have a dedicated pump for conveying admixtures.

Material Measuring System

- Aggregate Weighing Scale: It accurately measures the conveyed aggregates to ensure that the amount of aggregates meets the requirements of the mix ratio.
- Powder Weighing Scale: It is used to measure powders such as cement and fly ash, generally with high measuring accuracy.
- Water Weighing Scale: It accurately measures the amount of water for mixing. Some are also equipped with auxiliary measuring devices such as flow meters.
- Admixture Weighing Scale: It accurately measures the admixtures to control the amount of admixtures added.

Mixing Main Unit

- Forced Mixer: It has a strong mixing effect and can evenly mix the materials in a short time. It is suitable for mixing dry hard, semi-dry hard, plastic and concrete with various mix ratios.
- Self-falling Mixer: The blades inside the mixing drum lift the materials to a certain height and then let them fall freely to achieve mixing. It is commonly used for mixing plastic concrete.

Control System

- Operation Room: Operators monitor and operate the running of the entire mixing plant through the control system here, including setting parameters, starting and stopping equipment, etc.
- Electrical Control Cabinet: It contains various electrical components and control circuits to achieve the power supply and operation control of each device.
- Control System Software: It can accurately control and manage material measurement, mixing time, production process, etc. It can also record production data and generate reports.

Pneumatic System

- Air Compressor: It provides compressed air for the pneumatic system.
- Air Storage Tank: It stores compressed air and stabilizes the air pressure.
- Pneumatic Components: Such as solenoid valves, cylinders, etc., are used to control the actions of equipment like discharge-gates and feeding devices.

Auxiliary System

- Powder Conveying Pipeline: It connects the powder bins with the measuring device, mixing main unit, etc., to achieve the conveyance of powders.
- Aggregate Discharge Port: It is located at the bottom of the aggregate bin and is used to discharge the aggregates onto the conveying equipment.
- Dust Removal Equipment: Such as pulse bag dust collectors, etc., are used to collect the dust generated during the operation of the mixing plant and reduce environmental pollution.
- Wastewater Recycling and Treatment System: It recycles, precipitates, filters and treats the wastewater generated by the mixing plant to achieve the recycling of water resources.
Product Parameters

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

NO.	Foundation-free 1000# Concrete Batching Plant Main Components
1	CONCRETE MIXING SYSTEM
2	AGGREGATE BATCHING MACHINE
3	INCLINED BELT CONVEYOR
4	AGGREGATE PRO-STORAGE BIN
5	CEMENT MEASURING SYSTEM
6	WATER MEASURING SYSTEM
7	ADDITIVE MEASURING SYSTEM
8	PNEUMATIC SYSTEM
9	FULL AUTOMATIC CONTROL SYSTEM
10	CONTROL ROOM
11	OTHER ACCESSORIES (CABLE & CABLE TRAY)
12	BOLTED CEMENT SILO (OPTIONAL)
13	SCREW CONVEYOR (OPTIONAL)

Model No.		JS500	JS750	JS1000	JS1500	JS2000
Output capacity		500L	750L	1000L	1500L	2000L
Input capacity		800L	1200L	1600L	2400L	3200L
Productivity		≥25m3/h	≥35m3/h	≥50m3/h	≥75m3/h	≥100m3/h
Aggregate Maximum Particle Size (Pebble/Gravel)		80/60	80/60	80/60	80/60	80/60
Stirring blade	Rotating speed	35r/m	31r/m	25.5r/m	25.5r/m	23r/m
	Quantity	2×7	2×7	2×7	2×8	2×8
Stirring motor	Model No.	Y180M-4	Y200L-4	Y225S-4	Y225M-4	Y280S-4
	Power	18.5KW	30KW	18.5KW*2	30KW*2	37KW*2
Hoist motor	Model No.	YEZ132S-4-B5	YEZ132M-4-B5	YEZ160S-4	YEZ180L-4	YEJ180L-4
	Power	5.5KW	7.5KW	11KW	18.5KW	22KW
Water pump	Model No.	50DWB20-8A	65DWB35-5	KQW6	KQW65	CK65/20L
	Power	750W	1.1KW	3KW	3KW	4KW
Hopper lifting speed		18m/min	18m/min	21.9m/min	23m/min	26.8m/min
Dimensions (length x width x height)	shipping status	3050×2300×2680mm	3650×2600×2890mm	4640×2250×2250mm	5058×2250×2440mm	5860×2250×2735mm
Total Weight		4000kg	5500kg	8700kg	11130kg	15000kg

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are one of the largest concrete batching plant manufacturers in China. The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications

Our Advantages
Ningdu Xingye Machinery Manufacturing Co., Ltd. was established in July 2013 and is located in Xinzhongsheng Industrial Park, Ningdu County, Ganzhou City, Jiangxi Province. It is a national-level specialized new technology enterprise integrating machinery manufacturing, R&D design, trade logistics and overseas sales. It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels. The company has successively held more than 20 national invention patents and independent intellectual property rights, and has a leading industry position and innovation capabilities.
We adhere to the business philosophy of "taking technological innovation as the core, product quality as the cornerstone, and customer satisfaction as the purpose", constantly explore, strengthen research and development, actively expand service areas and customer needs, and create unlimited possibilities for the company's development. The products have won wide recognition in the market for their excellent performance and reliability.
For more than 10 years since its establishment, the company has been working hard in the field of machinery manufacturing and sales. The products have been exported to more than ten countries and regions around the world, and have established long-term and stable cooperative relations with well-known companies in the United States, Singapore, Malaysia, Indonesia and other countries, and established a good brand image and market reputation.
While the company continues to grow, it actively fulfills its social responsibilities and is committed to energy conservation, emission reduction and sustainable development. The company strictly abides by national and local environmental protection laws and regulations, and continues to contribute to environmental protection and sustainable development. At the same time, we are also actively involved in various public welfare undertakings, and contribute to public welfare undertakings in the fields of society, community, environmental protection, and humanities.
The company currently has more than 100 employees. We insist on being people-oriented and attach importance to the growth and development of employees. The company has successively equipped employee dormitories, canteens, living and leisure areas, sports and fitness areas and other living facilities to provide employees with a good working environment; and customized a complete training and promotion mechanism for the entire process of the 2+3 model to enhance employees' sense of belonging, sense of accomplishment and happiness.
Looking to the future, we will continue to deepen our efforts in the fields of machinery manufacturing, R&D design, trade logistics, overseas sales, etc., increase R&D investment, and promote technological innovation and product upgrades. We will actively expand domestic and foreign markets, explore customer needs through precise market positioning and marketing strategies, and establish and enhance brand awareness at home and abroad. In the future competition, we will continue to lead the industry with outstanding technical strength and product quality.


FAQ
Question 1: Are you a factory or a trading company?
Answer: We are both a factory and a trading company. We are a factory focusing on concrete batching plants for more than 15 years, and all supporting equipment is ready, including but not limited to concrete batching machines, stabilized soil mixing plants, cement silos, concrete mixers, screw conveyors, concrete mixer tank trucks, crushers and other construction & building machinery.
Question 2: How to choose a suitable mixing plant model?
Answer: Just tell us the concrete output you want to produce every day or month (cubic meters/day).
Question 3: What are your advantages?
Answer: Rich production experience, excellent design team, strict quality audit department, strong after-sales installation team
Question 4: Do you provide training and after-sales service?
Answer: Yes, we will provide on-site installation and training, and we also have a professional service team to solve all problems as soon as possible.
Question 5: What are the payment terms and trade terms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance to be paid before shipment.
EXW, FOB, CIF, CFR are our commonly used trade terms.
Question 6: How about the delivery time?
Answer: Normally, stock items can be shipped within 1 to 2 days after receiving payment.
For customized products, the production time takes about 7 to 15 working days.
Question 7: How about the warranty?
Answer: All our machines can provide 12 months warranty.

---
