CNC High Speed Marking and Drilling Machine for Angle Model Jgz2532h

Product Description

Applicable Industry:
The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.
Product Composition:
This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Product feature:
1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.
Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
2. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.
3. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.
4. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.
5. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.
6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.
7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
8. With self-diagnosis failures function.
Special advantages: Space between our character groups is larger, which can accommodate bigger size character. Enclosed marking unit. It is more stable and safe. And it will prolong the life of marking unit. Minimum End piece length to minimize scrap. Machine suitable to Indian condition like motor of 415 volts, 50 Hz. We can provide chiller for hydraulic tank oil cooling to prevent damage of cylinder part due to oil temperature (optional but can be done on client request). POWER: Three phase four wire systems
AC Voltage: 380V or 415V for India
Fluctuation of voltage: ±5%
Frequency: 50Hz
Local working temperature: 0-40ºC
Specifications:

Model	JGZ2532H
Angle size(mm)	130х130х10~250*250*32mm
Marking force(kN)	1030
Max. length of blank(m)	14
Max. length of finished(m)	14
No. of drill on each side(piece)	3
No. of character group(piece)	1
No. of character in each character size(piece)	15
Character side(mm)	14×10×19
Range of back mark (mm)	50-220 (stepless)
CNC axes(piece)	3
Spindle rotation speed(r/min)	6000 rpm,Transducer stepless adjustment
Feeding speed of angle(m/min)	40
Diameter of drilling(mm)	Ф17.5~Ф40
Stroke of Spindle(mm)	180
Processing precision	Accordance with GB2694-81
Programming mode	Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions (mm)	32000×7500×3150
Gross weight of machine(kg)	Approx.36800
Total power(kW)	75

Main Components List:

No.	Name		Manufacturer
Main Electric Components
1	PLC		Japan YOKOGAWA
2	Servo Motor		Japan YASKAWA
3	Servo Driver
4	Main motor		ZHENG HUA
5	Transducer		INVT
6	Business Computer		China Lenovo
7	Photoelectric Switch		AUTONICS
8	Proximity Switch		AUTONICS
9	Push button		German SIEMENS
10	Indicator light		German SIEMENS
11	Contactor switch		German SIEMENS
12	Stroke Switch		Taiwan TEND
Main Hydraulic Pressure Components
1	Hydraulic Valves		Italy ATOS
Main Pneumatic Components
1	Carriage	Up Cylinder	Taiwan AirTAC
2		Clamp Cylinder	Taiwan AirTAC
3		Electromagnetic Gas-valve	Taiwan AirTAC
4	Unload Conveyor	Overturn Cylinder	Taiwan AirTAC
5		Electromagnetic Gas-valve	Taiwan AirTAC

If any part model is upgrade or changed, we promise to use same quality level part to replace it.
Spare parts list:

No	Name	Material	Qty.	Remark
1	Upper clamping jaw	T10A	2	Including installed in machine
2	Nether clamping jaw	T10A	2	Including installed in machine
3	Character box	T10A	2	Including installed in machine
4	Characters	T10A	2 set	Including installed in machine
5	Proximity switch	Normal open	1	AUTONICS
6	Proximity switch	Normal close	1	AUTONICS
7	Proximity switch		1	AUTONICS
8	Travel switch	TZ-8104	1	Taiwan TEND
9	Photoelectric switch		1	AUTONICS
10	Combination pad		1 sets	GB982-77
11	Reducing sleeve	Φ17.5~Φ40	1 set
12	O ring	Exported famous brand	1 set	GB1235-76
13	Tools with equipment		1 set
14	Standby paint		1 pail
15	Operation Manual & Attached Drawings		2 sets

(Option unit) Cutting Unit (Max. Size :200x200x20mm)

Double blade cutting

This unit consists of frame machine body, hydraulic pressure dynamic cylinder, upper blade setup, lower blade setup, and front bracket tank etc. The front bracket tank avoids angle steel to strike lower blade. The lower blade setup can adjust the clearance according to angle steel thickness to ensure the cutting quality. It cuts different standards of angle steel, according to the order of computer.

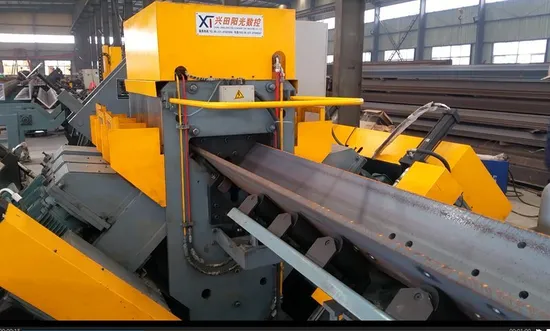

The Drilling Unit

We solved the fatal problem of this machine. During drilling, the cooling water will go inside the drills, drill will be locked. Now we make new design for it. The cooling water will not go inside of spindle and drills will not be locked by rust. We add a cover on top of the guide device of spindle, which can prevent dust and scraps from going inside of piston unit of guide device. It will protect the spindle and prolong its life. (This is our patent)

Drilling Unit: The unit is consists of two slanting 45°frames, four vertical plates, two hydraulic drilling heads and two sets of servo drivers used for controlling the stadia adjustment. This unit can be installed three different standards of drills on each side. It can choose drilling heads automatically according to computer instruction. The position of stadia is located by servo motor, which drives drilling head to move up and down through the transmission of ball screw, thus to achieve the requirement of stadia position. It can drill many rows and different diameters holes on two wings of angle steel.

The feeding of three drilling spindle controlled by three cylinder, besides, our machine equipped with the balancing cylinder, this cylinder help reduce the pressure of the pump, extend the working life of pump and ball screws.

The Marking Unit

Our new close type marking unit, more stable and longer life

Marking characters (36 pics : 0-9, A-Z)

Marking Unit: This unit is consists of fixed lathe bed, movable lathe bed, hydraulic pressure head and manual adjustment device. According to the order of computer, the unit marks on places required on the drawings. For making the marks clear and endurable, and avoiding the angle steel abrades character heads, it adds the functions of loading oil cylinder and lifting movable lathe bed. For satisfying the processing scope, it adds manual adjustment device, which can change the position of characters to adapt different standards angle steel.

Workpiece Sample
Free sample testing:
For free sample making/testing, please send your samples or products CAD drawings, we can test run the machine and show you machine test running.
Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
After-sales service: Training for installation and service: We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, whatsapp, Wechat, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting. You can come to our factory for inspection and training. We will provide professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility,we will also provide accommodation during training period. The Strong after--sale service team in China, Our engineers (staffs) can speak fluent English to communicate and solve question when you have requirement calendar day per person. 4) Depending on the region, If need our engineer to visit for installation, we will dispatch engineer for installation and service at your site.
Installation and Training Time: 3-5 working days(Recommend)..
Warranty: The guarantee period of quality shall be 24 months counting from the date on which the machine finished installation and accept by Buyer. We are responsible for providing the free of charge during the guarantee period. If out of guarantee time, all damaged parts are charged.

---
