2500kg 3000kg 3500kg Load Capacity Electric Forklift Vlift Recommend Hydraulic Forklift 3000/4500/6000mm Lifting Height 100ah 150ah 205ah 230ah Battery Optional

Product Description

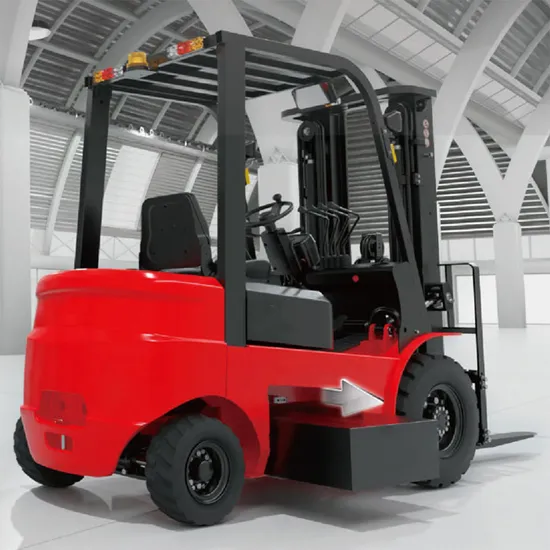

Product Description Direct Selling 3Ton Quick-change Lithium Battery Forklift1. Lifting overload protection, explosion-proof design;
2. Standard with fork drop buffer function;
3. Ramp operation without slope;
4. Full LED lights, night vision more secure;
5. The lithium battery is made of top electric car grade electric core;
6. Tapered roller steering axle with one casting, durable and safe;
7. Professional waterproof design, passing the standard rain test;
8. Quick-change lithium battery, flexible range, optional 100Ah, 150Ah, 205Ah, 230Ah.
Product Parameters

Characteristics
1.1	Manufacturer		VLIFT
1.2	Model designation		EFX302
1.3	Drive unit		Lithium Battery
1.4	Operator type		Rider seated
1.5	Load capacity	Q (kg)	3000
1.6	Load center	c (mm)	500
1.7	Load distance	x (mm)	481
1.8	Wheelbase	y (mm)	1650
Weights
2.1	Service weight	kg	3920
2.2	Axle loading, laden front/ rear	kg	6580/440
2.3	Axle loading, unladen front/ rear	kg	1700/2220
Wheels, Chassis
3.1	Tyre type		Pneumatic
3.2	Tyre size, front		7.00-12-16PR
3.3	Tyre size, rear		18X7-8-14PR
3.4	Wheels, number front/ rear (x=drive wheels)		2x/ 2
3.5	Tread, front	b10 (mm)	975
3.6	Tread, rear	b11 (mm)	955
Dimensions
4.1	Mast/ fork carriage tilt, forward/ backward	α/ β (°)	6/ 10
4.2	Height, mast lowered	h1 (mm)	2070
4.3	Free lift	h2 (mm)	135
4.4	Lift height	h3 (mm)	3000
4.5	Height, mast extended	h4 (mm)	4095
4.6	Height of overhead guard (cabin)	h6 (mm)	2170
4.7	Seat height	h7 (mm)	1110
4.8	Tow coupling height	h10 (mm)	295
4.9	Overall length	l1 (mm)	3566
4.10	Length to face of forks	l2 (mm)	2496
4.11	Overall width	b1/ b2 (mm)	1154
4.12	Fork dimensions	s/ e/ l (mm)	40×122×1070
4.13	Fork carriage width	b3 (mm)	1100
4.14	Ground clearance, laden, below mast	m1 (mm)	120
4.15	Ground clearance, center of wheelbase	m2 (mm)	150
4.16	Aisle width, 1000×1200 pallet crossways	Ast (mm)	3898
4.17	Aisle width, 800×1200 pallet lengthways	Ast (mm)	4098
4.18	Outer turning radius	Wa (mm)	2217
4.19	Inner turing radius	b13 (mm)	--
Performance
5.1	Travel speed, laden/ unladen	km/ h	11/12
5.2	Lifting speed, laden/ unladen	m/ s	0.29/ 0.36
5.3	Lowering speed, laden/ unladen	m/ s	0.4/ 0.43
5.4	Maximum gradeability, laden/ unladen S2 5 min.	%	15/15
5.5	Service brake		Hydraulic/mechanical
Drive
6.1	Drive motor rating S2 60 min.	kW	8
6.2	Lift motor rating at S3 15%	kW	16
6.3	Battery voltage/ rated capacity (5h)	V/ Ah	80/100
Others
7.1	Type of drive control		AC
7.2	Operating pressure for attachments	bar	175
7.3	Sound level at operator's ear	dB (A)	74

Packaging & ShippingAccording to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
CertificationsWe got CE certificate for material handling equipment of Manual Lift Trucks and Electric Lifting Trucks.

Company ProfileCompany introduction:
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables. Vlift aims at provide you high quality, high performance material handling equipment. Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
FAQOEM and ODM
We provide you with the service of making your company logo, nameplate, etc. free of charge and accept all orders OED and ODM based on a certain quantity.
Delivery lead time
our lead times are usually within 3-15 days, except for customised products and products with shortage of parts.
Customs clearance matters
We provide you with complete customs clearance documents, upon your request, can provide you with various commercial certifications based on the products ordered.
After Sales ServiceAbout after-sales service
1) Operation Manual and parts manual:
We provide you with detailed and professional English manual and parts manual, including paper and electronic versions, with detailed pictures so that you can understand the various parts of the product at a glance.
2) After-sales support:
We provide after-sales support with a minimum response time of one hour, and our after-sales team provides you with comprehensive guidance in the form of text, telephone and video.
3)Accessory supply:
except for some perishable parts, all other products and parts sold by us are guaranteed for 1 year or 2000 hours; parts beyond the warranty period will be provided to you at a 20% discount from the market price.
