High Quality Full Auto Laminator Machinery 720A

Product Description

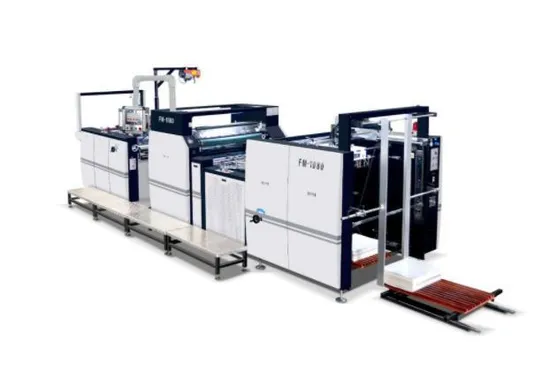

Full Automatic Lamination Laminating Machine(CWFM-1080)
Product Description
1. Automatic paper feeding device without pressure. (Continuous work, save time)
2. The whole machine adopts one-key start. (Simple operation and easy to learn)
3. Equipped with special feeder head for high-speed offset printing machine. (Accurate and stable paper feeding)
High-precision servo paper positioning system. (Interlocking accuracy: ±1.5mm)
4. The smart bounce roller pulls the paper pneumatically. (Slitting is clean and neat, with few film edges)
5. Equipped with a large diameter 800mm drying roller. (Compared with conventional products, it saves about 35% of electricity)
6. Coating adopts anti-roll sizing. (Spread the glue evenly, save glue)
7. Use chain knife or disc knife or diamond grinding wheel for friction slitting.
8. The paper take-up machine is equipped with a counter plate. (Continuous paper delivery without stopping the machine, practical and convenient)
9. The touch screen uses hands to automatically switch the screen. (The equipment can be operated manually or automatically)
10. Automatic intelligent identification system. (When the machine is running automatically, the oven can be heated, fan, temperature, coating
Make appropriate adjustments to the amount of glue).
11. High-precision sensor detection system. (Accurate detection of empty sheets, broken sheets and continuous sheets can be performed according to different situations.
Automatic alarm, paper ejection, speed reduction, brake, standby or shutdown)
12. The instrument display is diversified. (Can display presets, cumulative counting; meter counting, linear speed, efficiency, square meters, etc.)
13. Acceleration and deceleration curve adjustment and speed tracking function. (Users can also change the smoothness of acceleration and deceleration according to the operating conditions to reduce the wear on the machine; speed tracking can memorize the normal production speed of this product)
14. Installation of electromagnetic heating system (the advantages are: constant temperature, fast heating and cooling speed, environmental protection, energy saving: compared with oil heating and energy saving about 30%)
15. Hydraulic lift truck for film application
16. The paper take-up machine adopts automatic plate change, which is easy to operate.
Product Parameters

Max.paper size	980*1060mm
Min.paper size	270×310mm
Paper weight	105-500g/m2
Speed	35-80m/min
Total power	55KW
Power Consumption	15-25KW
Machine weight	7200KG
Dimension	7000(L)×2000(W)×1800(H)mm
