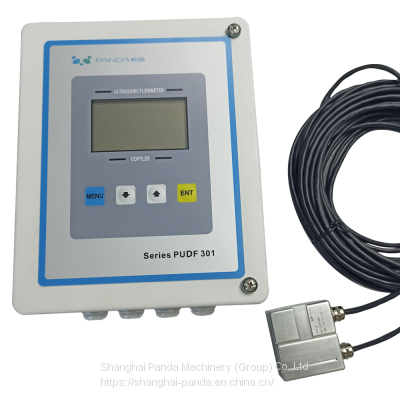

Product Details
Product Description
Product Description
Features:1. Non-invasive Installation,Unnecessary pipe cutting or flow interruption
2. Measuring Accuracy± 0.5% ~±2%F.S
3. Signal Automatic Gain Adjustment
4. Anti-interference Frequency Converter
5. Simple Operation,Only Input Inner Diameter To Realize Flow Measurement
6. 2*8 LCD Display Flow Rate,Volume,Velocity etc
Specification
Transmitter
Measuring Principle
| Doppler Ultrasonic
|
Velocity
| 0.05 - 12 m/s,Bi-directional measurement
|
Repeatability
| 0.4%
|
Accuracy
| ±0.5% - ±2.0% F.S.
|
Response Time
| 2-60 sec (Select by user)
|
Measuring Cycle
| 500 ms
|
Suitable Fluid
| Liquid containing more than 100ppm of reflector ( Suspended solids or air bubbles) ,reflector >100 micron
|
Power Supply
| AC: 85-265V DC: 24V/500mA(Select by user)
|
Installation
| Wall mounted
|
Protection Class
| IP66
|
Operation Temperature
| -40℃ ~+75℃
|
Enclosure Material
| Fibreglass
|
Display
| 2*8 LCD,8 digits flow rate,volume (resettable)
|
Measuring Unit
| volume/mass/velocity:liter,m³,kg,meter,gallon etc; flow time unit:sec, min, hour,day; Volume Rate:E-2~E+6
|
Communication Output
| 4~20mA, Relay,OCT
|
Keypad
| 4 buttons
|
Size
|
