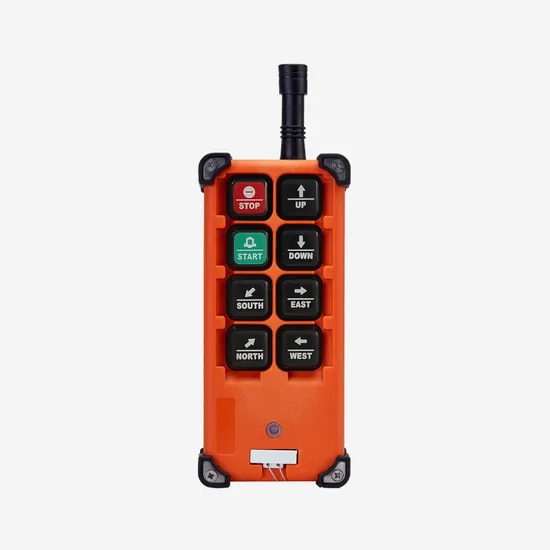

Nice Uting 18-65V 65-440V F21-E1b Industrial Remote Control Switch 6 8 Buttons Wireless Radio for Hoist Crane

Product Description

Please note :
1 . The remote controller , Button type is Momentary (default)
If you want to get Latching type , We can customize it for you .
Tips:
Momentary : Press the button ,working ; release the button , stop working .
Latching : Press the button ,working ; release the button , still working ; When you pressed the button again , stop working .
2 . All industrial remote controllers are UHF model .
Any question or problem , please feel free contact with us .
Product specifications :
12V UHF EN : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . English / Arrow buttons
18-65V UHF EN : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz . English / Arrow buttons
65-440V UHF EN : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz . English / Arrow buttons
F21-E1B Function Characteristic :
1. With 8 function buttons (6 single speed keys+1 start key+1 stop key).
2. Control contact is up to 8.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
7. Start button can be program to be start, normal, toggle function etc.
F21-E1B Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.5M cable connector
1 pieces dust bag
1 piece english manual
F21-E1B Wireless Remote Control Parameters :

Transmitter Parameters :
Material	Glass-Fiber PA
Protection level	IP65
Frequency range	UHF:425-446 MHz
Transmitter power	<=10dBm
Transmitter power supply	Two AA batteries
Safety code	32 bits (4.3 billion)
Temperature range	-40ºC~+85ºC
Controlling distance	Approx100m
Certification	CE, FCC, ISO9000
Waterproof option	YES . Waterproof
Receiver Parameters :
Material	Glass-Fiber PA
Protection level	IP65
Frequency range optional	UHF:425-446 MHz
Receiver sensitivity	-110dBm
Receiver power supply optional	12V ;18~65V ; 65~440V AC/DC (optional)
Output contactor capacity	8A sealed relay output( with AC 250V/10A relays,10A fuse)
Controlling distance	Approx100m
Safety code	32 bits (4.3 billion)
Temperature range	-40ºC~+85ºC
Certification	CE, FCC, ISO9001
Configuration	1 transmitter+1 receiver
Transformer power supply optional	AC 36V; 220V ; 380V (optional)
Switch power supply	AC DC12V;18-65V;65-440V(optional)
Configuration	1 transmitter+1 receiver

---
