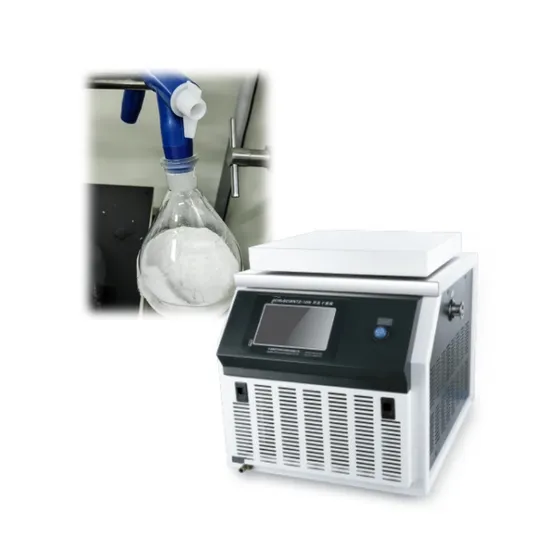

3kg Per Batch Medium Mini Freeze Dryer Experimental Bell Type Freeze Drying Machine with Oil Free Pump

Product Description

3kg Per Batch Medium Mini Freeze Dryer Experimental Bell type Freeze Drying Machine With Oil Free Pump
Product Description

Detailed Photos
Applications
Product Parameters

model	AY-10N
Freeze dried area (m ²)	0.12	0.08	0.12	0.08
Water catching capacity (kg/batch)	3	3	3	3
Penicillin bottle quantity of 12mm	920	560	920	560
φ16mm	480	285	480	285
φ22mm	260	165	260	165
Disk loaded solution (L)	1.5	1	1.5	1
Material tray size (mm)	φ200	φ180	φ200	φ180
Material tray spacing (mm)	70	70	70	70
Number of material trays (pieces)	4	3	4	3
Cold trap size (mm)	φ250×150
Minimum temperature of cold trap (ºC)	≤ -56 (empty load)
-Minimum temperature of 80 ºC cold trap (optional)	≤ -80 (empty load)
Ultimate vacuum degree (Pa)	≤ 5 (empty load)
Power Kw (220V50Hz)	0.95
Power Kw (-80 ºC)	1.35
Operating environment temperature (ºC)	≤25
Special note	The overall size and weight do not include an external vacuum pump

Company Profile

Jiangxi Aiyi High tech Co., Ltd., founded in 2015, is located in the picturesque Nanchang High tech Industrial Development Zone. We are committed to transforming the power of technology into an innovation engine in the scientific research community, providing excellent laboratory equipment and comprehensive technical support to global customers.
Our main products cover five core areas: chromatographs, spectrometers, general instruments, laboratory furniture, and life science instruments. Chromatographs and spectrometers, such as high-performance liquid chromatography (HPLC), atomic absorption spectroscopy (AAS), inductively coupled plasma emission spectroscopy (ICP-OES), etc., stand out in industries such as environmental monitoring and materials science due to their excellent analytical capabilities and stability. Universal instruments, including high-precision pipettes, incubators, etc., ensure a perfect combination of precision and efficiency in every experimental operation. Laboratory furniture integrates modern design concepts and safety standards, providing researchers with a beautiful and practical working environment. Life science instruments, such as PCR instrument, gel imaging analyzer, etc., contribute to cutting-edge research in the field of life science. Certifications

No accident shipping term:
DHL: 5-7 working days;
UPS: 7-9 working days;
FedEx: 7-9 working days;
EMS: 25-30 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country Customers Visit Factory

Packaging & Shipping

---
