Inner Mounted Flange Facing Machine Portable Seal Groove Flange Facer

Product Description

Portable Flange Facing Machine for Resurfacing Flanges for flange repair
Machine main performance

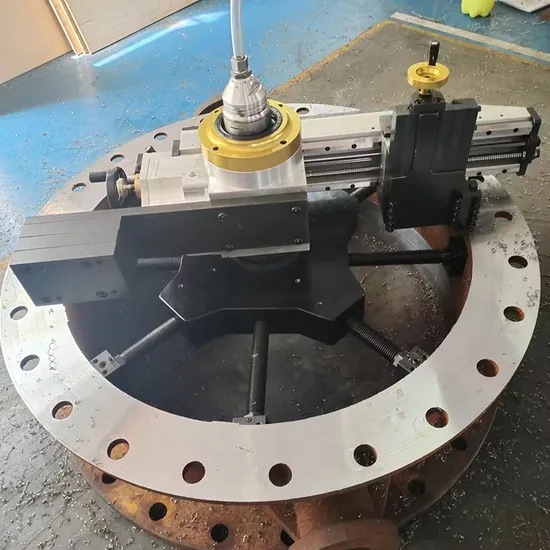

The flange facing machine is a high-precision and high efficiency machine. Machine using the latest linear and ball screw technology.The machine adopts an internal clamping method with a small working radius. It is fixed and various forms of sealing surface (RTJ ,RF etc ) of the flange, seal groove processsing etc
Machine Features
1. Compact design , Light Weight , Easy to carry out
2. Modular design , easy to operation
3. Internal Mounted , Small Working Raduis
4. Working Direction no limited ,vertical, horizontal, Invert etc both ok, high efficiency
5. Machine can manual or Automatic feed , high accuracy
6. Machine can process flange inner hole , flat face water line , continuous groove , outer circle and various sealing surfaces (RF , RTJ etc)
7. The machine widely used in the repair of flange sealing surface , repair and processing of flange surface of various metal materials such as cast iron , alloy structural steel and stainless steel.
Machine Specification

Model	Facing Range ( O.D )		Mounted Range ( I.D)		Tool Feed Stroke	Tool Holder Swivel Angle	Rotation Speed
610	50-610mm	2-24 inch	50-508mm	2-20 inch	50mm	+- 30 degree	0-42 r/min
1000	160-1000m	6-39 inch	158-820mm	6-32 inch	100mm	+- 30 degree	0-33 r/min
1650	500-1650mm	20-64 inch	500-1500mm	20-59 inch	102mm	+- 30 degree	0-22 r/min
2000	690-2200mm	28-86 inch	690-2000mm	28-78 inch	102mm	+- 360 degreee	0-20 r/min
3000	1150-3000mm	45-118 inch	1120-2800mm	45-110 inch	102mm	+- 360 degreee	3-12 r/min
Machine Driven : Servo Motor ( Electric ) ; Pneumatic

Machine Power Supply

Servo Motor ( Electric ) Voltage : Single Phase 1PH , 220V Frequency : 50/60 Hz Motor Power : 750-2000W	Pneumatic Air Pressure : 0.8-1.0 Mpa Air Consumption : 2000L/min Explosion Proof , more safe

Machine Capacity
1. Flange Surface ( Water line )
2. Seal Groove ( RF , RTJ etc)
3. Flange Spiral Sealing Line
4. Flange concentric circle sealing line
Machining Form
Machine Purchase Guide
Please provide more details about your requirement:
1. Flange outside diameter (O.D)
2. Flange inside diameter (I.D)
3. better can provide picture on site
I will Recommend suitable machine to you.

---
