US$80.00-130.00
|
100 Sets
(MOQ)
|
Basic Info.
Voice Service
With Voice Service
Installation
Surface-Mounted
Certification
FCC, CE, Red
Connection
2 Wire, WiFi/IP
Case
Metal Case with Vandal Proof
Power
DC15V, 0.8A / AC100-240V 50/60Hz (Optional)
Addtional Monitors Qty
up to 6
Ndoor Monitor Unlock Release
Support
Outdoor Panel Unlock Release
Support
Max Length of Line Connection
200meters
Transport Package
10PCS/CTN
Specification
46*41.5*36.5cm
Production Capacity
50, 000sets/Month
Product Description

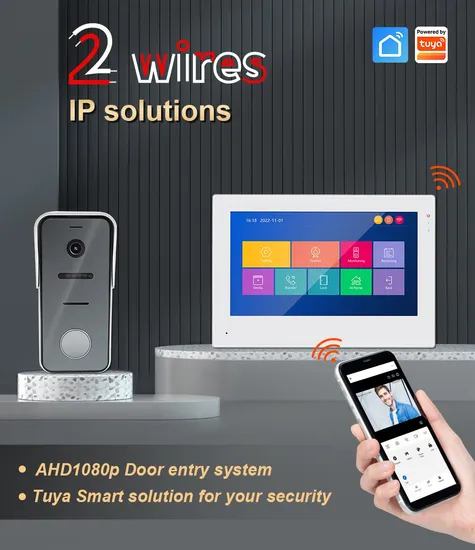

2-Wire IP/WiFi 7"HD Touch Screen Video Intercom Video Door Phone for Villa Apartment with Tuya APP Control
Description: Features: 1.7" Touch Screen HD display 1024x6002.Signal support AHD 1080P3.Signal formats support AHD4.10 polyphonic ring-tones switch freely5.With TUYA APP control6.Customized fancy start-up logo page to present your brand 7.Easy DIY connection to the WiFi, only one click reach 8.Simple steps to add device to the Tuya APP
9.All can be done within 1.5mins
10. Support wifi
11.The server(tuya) covers 190+ countries and regions
12.Connection :2 wires
Indoor Monitor Main function: 1.Hands free intercom, Lock control 2.Don't disturb function 3.Support micro SD card 4.Auto message leave 5.Video & audio recording 6.Simple DVR function with motion detection 7.Image capturing function 8.Multimedia function: Photo Frame, Music Playing 9.Support 2 Doorbells + 2 CCTVs + Monitors(up to 6) 10.Color, Brightness, Contrast, Volume and Display Mode adjustable 11.Real-time monitoring to Doorbells or CCTV camera 12.Intercom Call, Broadcast Function, Monitor Listening 13.Supports Door Panel unlock & Indoor Monitor unlock Outdoor doorbell Features: 1.Surface/Corner mounting 2.Zinc alloy housing 3.Resolution: 1080P 4.Type of signal: AHD 5.Waterproof IP54 6.Working temperature: -40ºC to +50ºC 7.With raincover 8.Wide viewing angle 150 degree 9.Power voltage DC 10-15V 10.Power consumption 2.5W 11.Anti-sabotage
All our PRODUCTS are passed CE, RoHS, FCC certificates, and with 2 years warranty, welcome to visit our factory or take samples to test our quality.
PRODUCTION STEPS
CERTIFICATES
FAQ 1.Is It possible support CVBS Video door phone ?
A:Yes ! can be work with 1AHD Call panel +1CVBS call panel +1AHD camera +1 CVBS panel
2. Do you have motion detection for video intercom?
A: Yes ! It's by software , no need connect with PIR Sensor ,motion detection from 1 call panel or 2 camera
3:How to play Music or Movies by indoor monitor ?
A:Download music or Movies from computer------Copy to the SD card ------ inside SD card to the monitor -----Play
4:What is Voice messgae ?
A: When you not at home , but your visitor pressing the call panel , after 30s or 120S , call panel will Auto say:Please leave a message , so that when you come back home can check video from indoor monitor who is come to you and in what time .
5:Please explain transfer calling how to work with Video door bell?
A: First our system are suppory connect 6 indoor monitor , When visitor press the call panel , Alina is answer the call , but visitor is looking for Mom , and mom at other room (No5 monitor ), So Alina can be choose No5 transfer call to Mom
6: Why 7 inch monitor resolution is 1024*600 , other company only 800*480 ?
A: Because we are doing different with market , In order to help our customer have Competitive advantage , win the market !
7: Warranty
A:24 months warranty
8: Warmly weclome to visit our factory
>>
