US$100,000.00-110,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Max.Opening Distance of The Shear
650mm
Transport Package
Nude Packing
Specification
7500*2500*3550mm
Production Capacity
3000units/ Year
Product Description

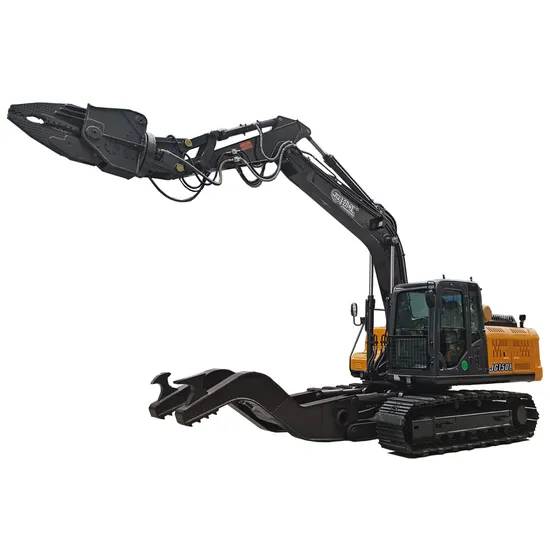

Customized crusher machine used on scrap cars
The 150L car demolisher can crush used cars, car cabs, car bumpers, car crushers, car compartments, car side panels, car keel bars, waste color steel tiles, etc., for recycling in iron and steel plants reuse.
| SPECIFICATIONS |
| RANGE OF OPERATION | Boom length | 4200mm |
| Arm length | 2000mm |
| Maximum Digging Reach | 7400mm |
| Maximum Digging Depth | 4500mm |
| Maximum Digging Force | 90KN |
| Maximum Digging Height | 7900mm |
| Maximum Dumping Height | 5600mm |
| Back-end radius of gyration | 2250mm |
| DIMENSION | (Length*width*height) travel position | 7500*2500*2920mm |
| Wheel base | 2850mm |
| Track Gauge | 1960mm |
| Width Of Crawler | 500mm |
| Ground clearance of counterweight | 940mm |
| Min ground clearance | 420mm |
| TECHNICAL PARAMETERS | Angle of rotation | 360° |
| Machine weight | 13500kg |
| Engine model | YUCHAI |
| Rated Power | 103KW |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 28Mpa |
| Hydraulic system flow | 270L/min |
| Variable piston pump | 2*63ml/r |
| Max Hauling force | 76.5KN |
| (High speed/Low speed) | 5km/h/2.9km/h |
| Grade Climbing ability | 70%/35° |
| Volume Of Bucket | 0.5m3 |
| Revolution Overdrive Pressure | 25Mpa |
| Full circle swinging time | 5.5s |
| Fqt Fuel Quantity | ≥8L/h |
| Capacity Of The Fuel Tank | 200L |
| Hydraulic Tank Capacity | 200L |
>>
