300m Width Web Aligner System for Mask Making Machine

Product Description

Product Description

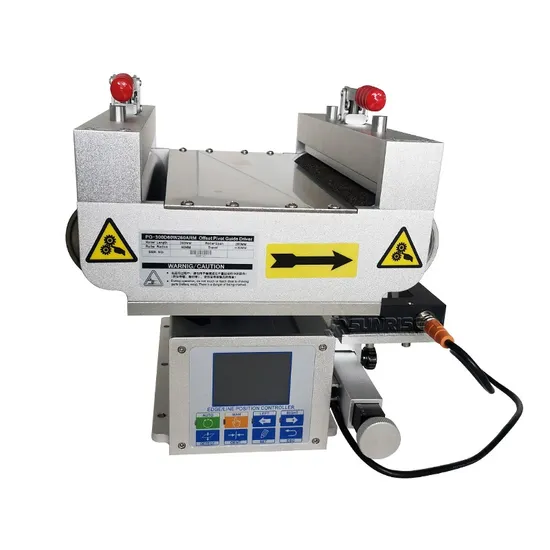

PG-300A Offset Pivot Guide System
All-in-one web guide control system PG Series :
Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.
Web guide system Product Features:
1. Brushless DC servo motor driving, maintenance free;
2. Accuracy ball screw bar and accuracy positioning;
3. With large guiding travel;
4. Roller length and width can be custom made;
5. Roller surface treatment can be anodized, rubber and cork leather;
6. Manual or air fixture of the cutting station is optional.
PG-300A
Web guide system Specification:

Power supply	DC24V~45V, stand 36V
CPU Processor	32-bit CPU main Frequency>72M
Rectification Algorithm	No Overshot Integral Variable PI Algorithm
Analog input	3 channel 0~6V, impedance 20K
Sensor voltage	DC12V ,350mA Max
Response time	0.5ms
Analog input resolution	12 bit ADC
Switch contacts input	3 channel NPN
Web control mode	EPC, LPC, CPC, SPC
Support the sensor type	Ultrasonic sensors, photo sensor, CCD sensor
Actuator speed	14mm/s~40mm/s can adjust
Actuator thrust	100Kgf/200Kgf/400Kgf/800Kgf
ESD protective	IEC1000-4-2,±15KV(Air),±8KV(Contact)
Screen display	2.8″,260K colors TFT
Motor drive	Brushless DC servo motor to drive
Levels of protection	Ip53

Drawing

Model No.	Roller Length L (mm)	Roller Dia. D(mm)	Roller Width C (mm)	Slide Block Height B (mm)	Base Length Y (mm)	Web Guide range (degree°)	Max. Tension (N)
PG-200A	200	50	230	25	260	±17	300
PG-250A	250	50	230	25	260	±17	300
PG-300A	300	60	260	25	310	±17	300
PG-350A	350	60	260	25	360	±17	300
PG-400A	400	60	320	35	410	±17	500
PG-450A	450	60	320	35	460	±17	500
PG-500A	500	60	320	35	510	±17	500
PG-600A	600	60	320	35	610	±17	500

Features
1. Brushless servo motor drive, maintenance-free
2. Precision ball screw, accurate positioning
3. The guiding stroke is large
4. Can be customized guide roller length and span
5. The guide roller can be optionally equipped with a hard anodized coating, rubber layer, wrap cork.
6. Can add the splicing table & clip based on customers' needs,see below picture.

The web guiding system refers to the technical operation adopted by the manufacturer to keep the sides of the coil neat and consistent during spraying, printing, punching, laminating, slitting or other coil winding processes. It is widely used. It has brought great benefits to the industry. Correction control has led to the emergence of industries such as steel, corrugated paper, textile, printing, labeling, labeling, paper, plastic film, building materials, cables, rubber, tires, and non-woven corrugated paper processing. Automatic control.
Application

Order Details

Item Name	PG-300A Offset Pivot Guide
MOQ(Minimum Order Quantity)	1pc
Lead time	3-5 days after receiving the deposit
Calculated Packing Size	50cm*45cm*36cm
Package	Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT, L/C,Western Union
Country of Origin	China

---
