X6332 Universal Turret Milling Machine Vertical Milling Machine

Product Description

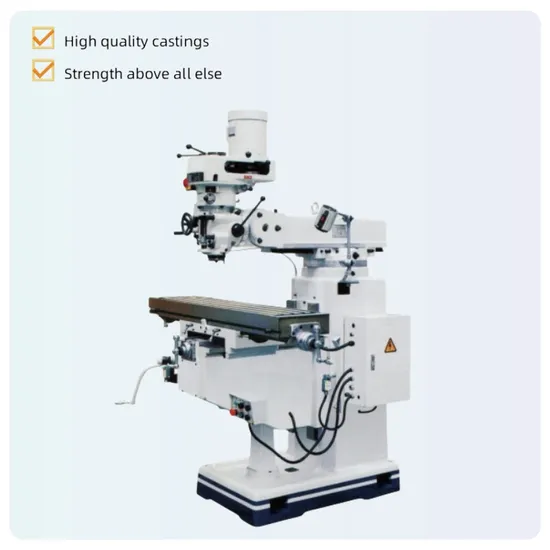

Product Picture
Specification Parameter

Specifications	X6325	X6330	X6332
Table size	254x1270 254x1370	305x 1370	320x 1570
Longitudinal travel	800 900	850	1000
Transverse travel	400 400	380	380
Vertical travel	400 400	400	400
Spindle speed range	standard:16steps 65-4500 (optiona7):infintevariable65-4200	standard:16steps 65-4500 optiona:infinitevariable65-4200	standard:16steps 65-4500 optlonal:infinitevariable65-4200
Spindle travel	127	127	127
Automatic spindie feeds	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15
Distance spindle end to table surface	0-445	0-405	0-405
Distance fram spindle axs to colurn	140-609	140-609	140-609
Spindle taper	standard:R8,optional:IS030NSO40	standard:ISO40	standard:ISO40
Spindle motor power	2.25	3.75	3.75
Head swivel	90°	90°	90°
Heed tilting	40°	40°	45°
Machine weight	1350kg	1350kg	1750kg

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
