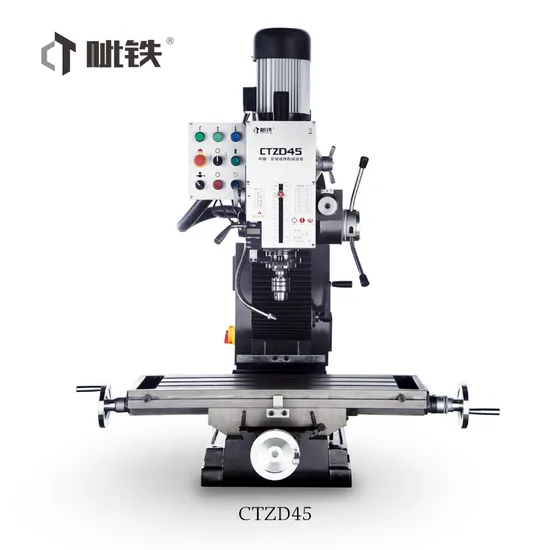

Mill Drill Machinery Drill Mill with Dro Vertical Milling and Drilling Machine Ctzd45 with Variable Speed for Metal Working

US$2,138.00
1-4 Sets
US$2,053.00
5-9 Sets
US$1,967.00
10+ Sets

Basic Info.

Model NO.
CTZD45
Type
Worktable Milling Machine
Object
Gear
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1150*1070*1430mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
500

Product Description

Max.Drilling capacity 45mm
Max.milling capacity 80mm
Max.vertical milling capacity 32mm
Max. tapping M30
Table size 800x240mm
Range spindle auto-cutting/Grade 0.06~0.30/prm(3)
X spindle travel 580mm
Y spindle travel 275mm
Z spindle travel 450mm
Spindle taper MT4
Spindle travel 130mm
Distance from spindle to column guide rail 260mm
Spindle box left&right rotation angle ±90
Spindle speed range 80~1250rpm
Motor Power 1.5KW
Net weight/Gross weight 400KG/450KG
Overall dimensions 1150x1070x1430mm
Package Size 720x720x1050mm
