US$29,000.00-38,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Filling Density
0.42ton/M3, 0.5ton/M3, 0.55ton/M3
Filling Medium
Propane/Propylene/LPG
Axles
BPW, Fuwa or L1 Brand
King Pin
Jost 50 # or 90 #
Tank Material
Q345r, Q370r 16mnr
Certicatation
CCC, ISO, ASME
Tire Type
12r22.5 Tubeless Tire
Transport Package
Nude Packing/ Waxed Bofore Shipment
Specification
CCC, ISO9001, ASME
Production Capacity
1000 Unit/Month
Product Description

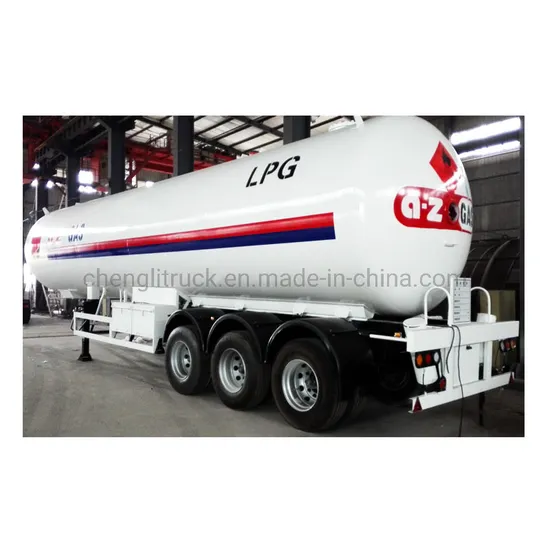

Heavy Duty Factory Sale 50M3 LPG Tank Semi Trailer
| Specification of LPG Semi-Trailer Tanker 50 CBM |
| Tanker Essential Information |
| Volume of Tank (cbm) | 49.6 |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12372 |
| Estimated Tare Weight (kg) | 15300 |
| Payload(kg) | 25000 |
| Total Weight(kg) | 36132 |
| Wheelbase(mm) | 6800+1310+1310 |
| Shell of Tanker |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(ºC) | -19ºC~50ºC |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Materials of tank | Tanker body:Q345R,12mm, |
| | End plate:Q345R,12mm,double ellipse |
| Detection |
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.21 |
| Manhole (As Customer's Requirement) |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer's Requirement) |
| Quantity | 2 |
| Location | On the top of tanker |
| Running System |
| Axles | 3*13T FUWA brand |
| Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |
| Control System |
| Emergency Cut-off Valves | 2 |
| Ball Valve | 2 |
| Liquid Gauge | 1(Float level gauge,at the rear of the end plate ) |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Accessories |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Paint | As Customer's Requirement |
| Service & Standard |
| Services | . We supply spare parts at factory price whenever needed;
. Free guidance and train on how to operate tank trailer |
| Standard | Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011 |
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Our factory could professionally manufacture 5000L-120000L LPG storage tank, 40000L-59600L LPG transport tanker trailer, LPG tanker truck, LPG filling truck, LPG gas station, LPG skid station.
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
>>
