Lab Metal Hot Melting Coating Machine with Evaporation Source Conductive Film Coating

Product Description

Lab Metal Hot Melting Coating Machine with Evaporation Source Conductive Film Coating

Product Description
OVERVIEW--THERMAL EVAPORATION
Thermal evaporation is a popular physical vapor deposition technique because of its simplicity. During this process, a material in a high-vacuum environment is heated to its evaporation point by joule heating of the resistive boat in which it is located. The vaporized molecules then travel from the source to the substrate where they nucleate together, forming a thin film coating. A wide variety of materials can be deposited using this technique such as aluminum, silver, nickel, chrome, magnesium, among many others.
Product Parameters
Specifications of thermal evaporation coater:

Product Name	Thermal Evaporation Coater
Model	TN-EVZ170-II-HH-SS
Sample Stage	Size	φ60mm
	Rotary Speed	1-20rp, adjustable
	Distance to the evaporation source	60~100mm adjustable
Thermal Evaporation System	Evaporation Source	Tungsten boat/basket
	Thermocouple	S Type
	Max. Temperature	1800ºC
Vacuum Chamber	Size	φ170*210mm
	Observation window	Quartz, φ80mm
	Opening	Top-open
	Material	SS304
Vacuum System	Model	TN-GZK103-A
	Sucking Port	KF40
	Molecular Pump	Osaka, 60L/s
	Exhaust Port	KF16
	Backup Pump	1.1L/s
	Vacuum Measurement	Composite vacuum gauge
	Composite vacuum gauge ultimate vacuum	1.0E-5Pa
	Pumping Speed	Vacuum up to 1.0E-3Pa in 20 minutes
Others	Voltage	AC220V,50Hz
	Total Power	2kw
	Overall Size	600*300*470mm
	Weight	45kg

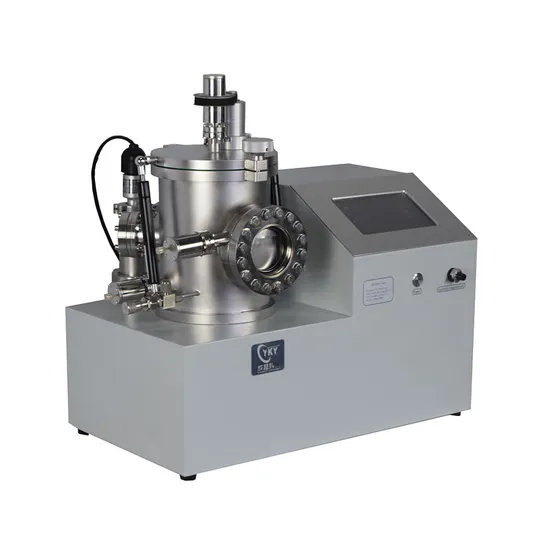

Detailed Photos
1. We have thermal evaporation coater with 1/2/3/4/8... evaporation sources, can evaporation metal and organic material2. Chamber material: High purity quartz--- low vacuum, SS304 chamber-- high vacuum3. Film thickness monitor is optional4. Thermal evaporation, E-beam, magnetron sputtering in one machine is available5. Different material of evaporation source is available6. Customize thermal evaporation coater according to your process is available
Company Profile
Zhengzhou Tainuo Film Materials Co., Ltd. is a comprehensive company integrating design, research and development, production and sales.Our company's main products are: spin coater, thermal evaporation coater, magnetron sputter coater, plasma sputter coater, E-beam evaporation coater, PLD pulse laser coating machine, plasma cleaner, CVD system, PECVD system, diamond wire cutting machine, melting furnace/stove, arc melting furnace, etc.Our products are widely used in the field of materials science research. We have extensive cooperation with domestic universities, laboratories, and new material companies. It has been successfully exported to more than 20 countries and regions including the United States, the United Kingdom, Germany, Russia, Switzerland, Canada, Brazil, etc. and have established long-term cooperative relationships with local dealers.If you are conducting materials research, please contact us and we will provide you with customized services to make your research experiments smoother!
Packaging & Shipping
We can ship the thermal evaporation coater by sea, by air, by land, b Express, also can arrange shipment according to your requirement.
FAQ
Q. Are you manufacturer or trading company?
A. We are professional manufacturer of laboratory instruments, We have professional R&D team and workshop, which can promise the qulaity and after-sale service.
Q. How's your warranty?
A. Our warranty is 12 months, and provide lifetime maintenance. We provide 24 hours on-line service.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A. 5-10 days----in store. Customzied products---It usually takes 30-60 days depending on your requirements.
Q. Power supply and plug?
A. We can provide products accroding to your local voltage and plug standard.
Q. How to pay?
A. T T, L / C, D / P, etc.
Q. How is the package of goods? Delivery methods?
A. Standard export fumigation sign wooden box packaging or as your requirements.
Contact Us
WE WANT TO HEAR ABOUT YOUR PROCESS!
Please get in touch and we can collaborate on your project. When we work together, amazing things can happen. Your brilliant ideas with our innovative team will create the tool that will bring your research or production to the next level. We're looking forward to hearing from you.

---
