Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.2-0.3m3
Certification
CE, ISO9001: 2000
Transport Package
Nude Packing
Specification
5800*2100*2850mm
Production Capacity
3000sets/Year

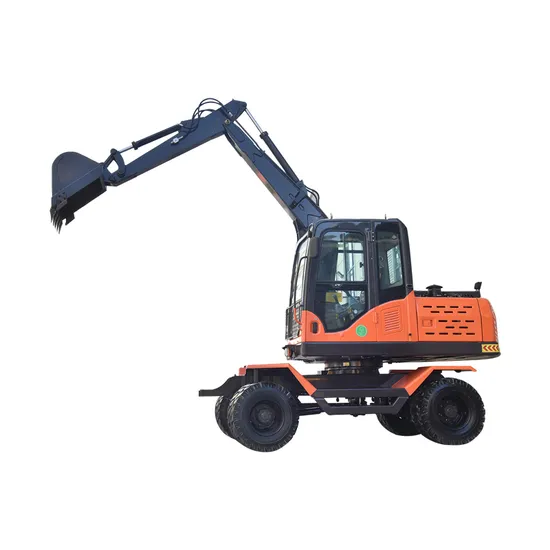

Product Description
Equipped with Yuchai engine, the power is stronger, the response is sensitive, low noise, low fuel consumption, and the adaptability is stronger.
The heavy-duty working device and large oil cylinder have super digging force, understand the boom technology, expand the working range and improve the adaptability of the whole vehicle.
The use of low-noise engine and fan effectively reduces indoor noise and improves the comfort of the whole machine.The machine adopts the latest fuel-saving technologies, such as in-cylinder direct injection, high compression ratio, turbocharging, etc.
| Boom length | 3300mm |
| Arm length | 1850mm |
| Maximum Digging Reach | 6240mm |
| Maximum Digging Depth | 3200mm |
| Maximum Digging Force | 45KN |
| Maximum Digging Height | 6970mm |
| Maximum Dumping Height | 4950mm |
| Back-end radius of gyration | 1980mm |
| (Length*width*height) travel position | 5800*2100*2850mm |
| Wheel base | 2400mm |
| Track(Front/rear) | 1660mm/1580mm |
| Ground clearance of counterweight | 1060mm |
| Min ground clearance | 285mm |
| Angle of rotation | 360° |
| Machine weight | 6300kg |
| Rated Power | 48KW |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 20Mpa |
| Hydraulic system flow | 120L/min |
| Metering gear pump | 2*28ml/r |
| Max Hauling force | 45KN |
| Walking speed | 25km/h |
| Grade Climbing ability | 58%/30° |
| Tyre model | 750.16 |
| Volume Of Bucket | 0.2-0.3m3 |
| Revolution Overdrive Pressure | 16Mpa |
| Full circle swinging time | 5.5s |
| Fqt Fuel Quantity | ≥6L/h |
| Capacity Of The Fuel Tank | 110L |
| Hydraulic Tank Capacity | 110L |
>>
