Stainless Steel Electronic Cabinet Lock with Reporting for Electronic Lockers

Product Description

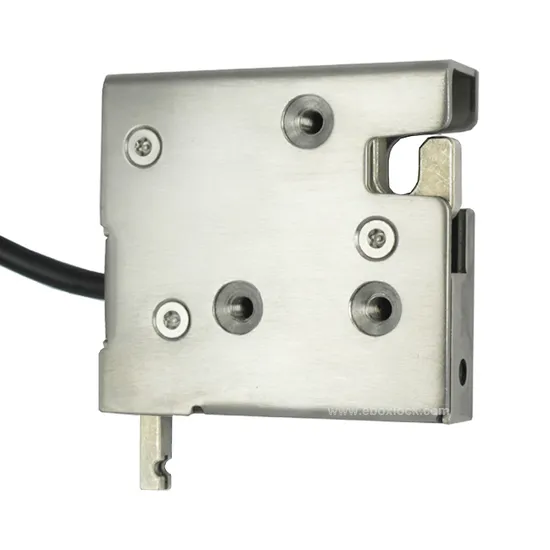

Electric Cabinet Lock MD1215LS-H is a high security access control solution for cabinets, drawers, safe and lockers. Robust all metal construction allows MD series cabinet lock operates against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the access
control of enclosures in a wild variety of applications.
Features
Superior heavy duty metal construction Stainless steel 304 housing­ Surface-mounted compact electric lock Convenient mechanical override enables manual release during power failure Operates against heavy mechanical load Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers, Can be fitted to locker, mail box and drawers etc
Specifications

Operation Voltage	12/24VDC intermittent ±10%
Power Consumption	12V DC 1500mA
Operation Mode	Fail Locked
Holding Force	600KG
Maximum power on time	Less than 30 second
Solenoid	Rated for intermittence use
Cycle Rating	More than 1,000,000 times
Working Temperature	-20ºC ~ +60ºC
Dimensions LxWxH	72mm*67mm*18mm
Gross Weight	250g
Protection Class	IP20
Compliance	CE and RoHs certificate

Part No.

Part No	Operating Current	Microswitch	Trigger Spring	Manual Override
MD1215	12VDC@1500mA	Without	10N/25N	Hidden
MD1215S	12VDC@1500mA	With	10N/25N	Hidden
MD1215L	12VDC@1500mA	Without	10N/25N	Exposed
MD1215LS	12VDC@1500mA	With	10N/25N	Exposed
MD1220	12VDC@2000mA	Without	10N/25N	Hidden
MD1220S	12VDC@2000mA	With	10N/25N	Hidden
MD1220L	12VDC@2000mA	Without	10N/25N	Exposed
MD1220LS	12VDC@2000mA	With	10N/25N	Exposed

We offer customization for cable length and connector type to better meet the exact requirement of your application.

Options for customization
Voltage	Current	Trigger Spring	Mounting holes	Material	Cable	Connector
9V 12VDC 24VDC 48V	1500mA 2000mA	10N 25N 35N	M5x16 thread(standard) M5x25 thru	Steel (standard) Stainless steel	Twisted RVV Flat cable	Molex KF2510 PH RJ11

Applications
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Steel cabinet or metal furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Key cabinet
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box
About Us
Dajiang Lock Co., ltd is a leading manufacturer specializing cabinet locks, drawer locks, and locker locks. No matter size-restricted enclosures or heavy-doored metal cabinets; our electronic cabinet lock can meet your particular security requirement with customized design for your applications. Our range includes electronic cabinet lock, electronic locker lock, solenoid lock, solenoid cabinet lock, drawer lock, keypad locker lock, keypad cabinet lock, combination cabinet lock, cabinet cam lock, combination locker lock, combination cam lock, digital locker lock, electric cabinet lock and electric bolt lock.
