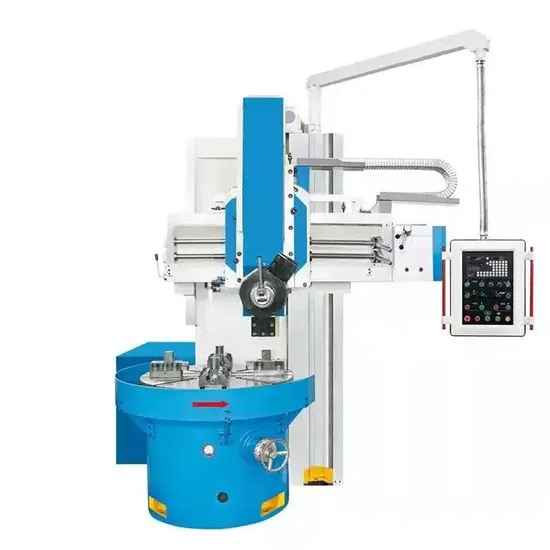

Big Size Heavy Duty CNC Single Column Vertical Lathe for Metal Processing

Product Description

Product Description
DESCRIPTION:
This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring. Tapering and surfcing as well as grooving can be carried out rough and finishing.
The table adopts thrust ball bearing with high accuracy for rolling guideway (CA5116E, CA5120E machine is also adopted slipping guideway). Spindle radial is performed NN30 type double row cylindrical rolling bearing. So it can improve the rotary procision and load capacity of
The table.
The rail head equipped with pentagonal turret, and the side heud is designed with square turret.
The two heads are all adopted the hydraulic balance.
The rail head (VL518E-VL5112E machine) is adopted rolling leadscrew bearing for transmis-sion in horizontal and vertical movement.
The electrical equipment of machine is controlled by PC. So it is high reliability.
Overall dimensions of machine is beautiful and it is delightful for people to use. It is easily for maintenaince and service.
The attachment of side head, digital control and turning taper can provided on special requirement.

Feature:
The table adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.
The column cross rail adopt high strengthness and high wear-resistance grey cast iron.
Firction pairs of guideway in horizontal and vertical diretion adopt wear-resistance grey cast iron.
Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.
Black chromium plane of new type for batton siation.
The rail head is designed with leadscrew for horizontal and vertical transmission.
Pentagonal turret pinion plate index positioning with high strenthness and rigidity.
Lubrication of cross is suppied with oil by hand pump.

Main specifications	Unit	Model	VL518E x 8/2		VL5110E x 8/3		VL5112E x H/5		VL5116E x H/W		VL5120E x H/W
Max. turning dia	mm		800		1000		1250		1600		2000
Table dia.	mm		720		900		1010		1400		1800
Max. height of workpiece	dm		8		8		10/12.5/14				12.5/16
Max. weight of worpiece	t		2		3		5		5/8		8/12
Max. cutting force of rail head	KN		20						25
Max. cutting force of side head	KN		15				20
Max. torque of table	KN.m		10		12.5		17.5		25		32
Range of table speeds (16Steps)	r/min		10-315		8-250		6.3-200		5-160		2.5-125
Range of feed rates (12Steps)	mm/min		0.8-86
Ram travel of rail head	mm		570		670		700		915		1050
Hor travel of rail head	mm		650						800
Ram hor. travel of side head	mm		500								630
Vertical travel of side head	mm		810	810		970		980		1180
Rapid traverse of tool heads	mm/min		1800
Height of tool bar section	mm		40
Power of main motor	Kw		22						30		37
Overall dimensions (L x W x H)	cm		208 x 282 x 272		219 x 2891 x 351		236 x 247x 348		2083 x 287 x 387		321 x 405 x 420
Weight of machine (Approx)	t		6.8		7.1		8.3/8.6/8.9		12.6/13.8/14.1		17.5/17.8
