1/4′′ SAE 100r2 High Pressure 200, 000 Impulse Cycles Hydraulic Rubber Hose Pipe

Product Description

EN853 2SN SAE100 R2 AT hydraulic rubber hose
Inner tube: Nitrile
Reinforcement: Two braid of high-tensile steel wire
Cover: Black Neoprene Blend
Temperature Range: -40°F to 212°F(-40ºCto 100ºC)
Application standards: EN853 2SN,GB3683.1 2SN,SAE J517 R1S, ISO 1436 2SN
Branding: 2SN-16-25mm 1''GB /T3683.1 SAE J517 EN853 W.P. 8.8Mpa(2390psi)

SAE 100 R2 technical data

Items number	Hose I.D.	Hose O.D.	Max W.P.		Min B.P		Min.B.R	Weight
	in	mm	Mpa	psi	Mpa	psi	mm	Kg/m
2SN-3	3/16	14.1	41.5	6019	165	23930	90	0.27
2SN-4	1/4	15.7	40.0	5801	160	23204	100	0.34
2SN-5	5/16	17.3	35.0	5076	140	20304	115	0.39
2SN-6	3/8	19.7	33.0	4786	132	19144	130	0.49
2SN-8	1/2	23.0	27.5	3989	110	15956	180	0.59
2SN-10	5/8	26.2	25.0	3625	100	14500	200	0.71
2SN-12	3/4	30.1	21.5	3118	86	12472	240	0.89
2SN-16	1	38.9	16.5	2393	65	9430	300	1.37
2SN-20	1 1/4	49.5	12.5	1813	50	7252	420	2.27
2SN-24	1 1/2	55.9	9.0	1305	36	5220	500	2.44
2SN-32	2	68.6	8.0	1160	32	4640	630	3.00

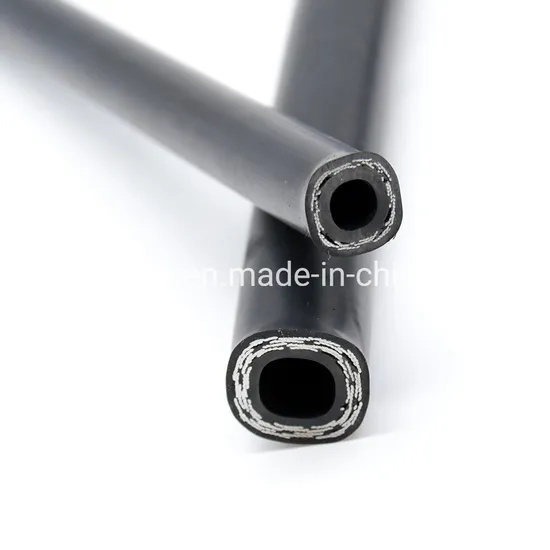

Cutting surface picture:
Quality control:
Our Lab: USA Magnatech braid/spiral machines
Packaging & Shipment: Paper+pallet/carton box+pallet/roll package
Application: Construction machinery
Our Services 1. We can offer OEM Services
2. We can provide FREE SAMPLE for our customers
3. We can crimp hose assembly for our customers.
4. We welcome clients to visit our factory leading to a better understanding of our production.

---
