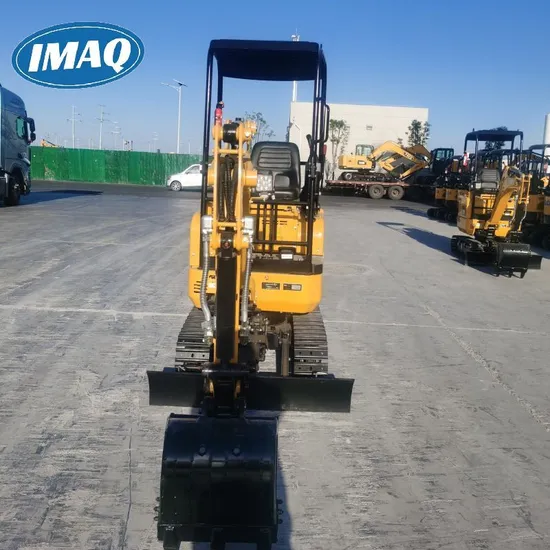

0.6ton 1ton 0.8ton 1.8ton N Swing Boom China Micro New Garden Farm Home Hydraulic Crawler Small Bagger Digger Graver 2ton 3ton 4ton 5.5to Mini Excavator

Product Description

Small excavators include 18~150, specially designed for municipal renovation, urban construction, farmland water conservancy, landscaping and other construction design, with "high efficiency and energy saving performance, comfortable driving, convenient maintenance" and other characteristics.

Small excavators include 18~150, specially designed for municipal renovation, urban construction, farmland water conservancy, landscaping and other construction design, with "high efficiency and energy saving performance, comfortable driving, convenient maintenance" and other characteristics.

Adopt firstclass brand engine, strong power, reliable performance.
The intake air adopts one stage centrifugal prefiltration + two stage fine filtration (main filtration + safety filtration).
Professional customized hydraulic system, automatically match the flow according to the load, smooth composite action, accurate control,
The structure of the working device is optimized to avoid local stress concentration and improve working efficiency.

Chassis stability is good, four-wheel belt with industry well-known brands.
Large space cab, visual field and operation comfort significantly improved, standard touch display, a start and other functions.

Item		Unit	IM18	IM36U	IM55	IM60	IM80	IM130	IM150
Machine parameters	Operating weight	kg	1880	3800	5910	5960	7800	14000	14500
	Bucket capacity	m³	0.05	0.13	0.21	0.23	0.34	0.66	0.7
Engine	Engine Model	/	3TNV80F-SPSY3	3TNV88	4TNV94L	4TNV94L	4TNV98	F4.5	F4.5
	Direct injection	/	interspray	√	√	√	√	√	√
	stroke	/	√	√	√	√	√	√	√
	water-cooling	/	√	√	√	√	√	√	√
	turbocharging	/	/	/	/	/	/	√	√
	Air-to-air cooling	/	/	√	/	/	/	√	√
	Number of cylinders	/	3	3	4	4	4	4	4
	Engine rating	kW/rpm	14.6/2400	22.2/2400	35.9/2000	35.9/2000	46.2/2200	96/2100	96/2100
	displacement	L	1.267	1.6	3.059	3.059	3.319	4.5	4.5
Hydraulic system	Main pump Rated flow	L/min	64	108	158	158	168	2x118	2x118
	Main safety valve pressure	MPa	21.6	25	23.1	23.1	28.2	34.3	34.3
	Travel system pressure	MPa	21.6	25	23.1	23.1	25	34.3	34.3
	Rotary system pressure	MPa	11	25	23.1	23.1	25	27	27
	Pilot system pressure	MPa	3.9	3.9	3.5	3.5	3.9	3.9	3.9
Oil capacity	Fuel tank volume	L	21	40	130	130	130	270	270
	Hydraulic tank volume	L	15	40	80	80	120	190	170
	Engine oil capacity	L	3.4	6	10	10	12	18	18
Main performance	Travel speed (high/low)	km/h	4.2/2.1	5.0/2.6	4.4/2.4	4.4/2.4	5.4/2.9	5.5/3.5	5.5/3.5
	Turning speed	r/min	9.1	9	11.9	11.9	11.5	12.2	12.22
	Climbing ability	°	30	35	35	35	35	35	35
	Ground specific voltage	kPa	32.6	32	33	32.5	33	41.2	34.87
	Bucket digging force	kN	15.2	33.7	46	46	56	102.8	102.8
	Bucket rod digging force	kN	8.8	19.9	32	32	38	65	65
	Maximum tractive effort	kN	19.5	38	45	45	66.3	120.75	120
Standard configuration	Boom length	mm	1825	2540	3000	3000	3720	4600	4600
	Rod length	mm	950	1400	1600	1600	1670	2900	2500
	Bucket bucket capacity	m³	0.05	0.13	0.21	0.23	0.34	0.66	0.7
Assorting	Rod length	mm	/	/	/	/	/	/	/
	Bucket bucket capacity	m³	/	/	/	/	/	/	/
Overall dimension	Overall length	mm	3560	4875	6160	6160	6145	7700	7700
	Overall width	mm	990/1280	1730	1960	1960	2250	2550	2550
	Total height	mm	2360	2510	2686	2686	2722	2918	2918
	Total height (boom top)	mm	2675	1840	2487	2487	2722	2685	2658
	Turntable width	mm	90	1543	1876	1876	2040	2490	2575
	Track length	mm	1585	2122	2488	2558	2827	3664	3750
	Chassis width	mm	990/1280	1730	1960	1960	2250	2490	2490
	Track width	mm	230	300	400	400	450	500	500
	Track wheelbase	mm	1230	1640	1975	2035	2250	2390	3010
	gauge	mm	760/1050	1430	1560	1560	1800	1990	1990
	Counterweight ground clearance	mm	495	590	768	768	800	911.5	931
	Minimum ground clearance	mm	150	295	393	393	385	425.5	427
	Minimum turning radius of the tail	mm	640	86O	1650	1650	1750	2255	2255
	Track height	mm	395	524	580	580	700	950	827
	Counterweight height	mm	/	/	/	/	1850	2261	2261
Scope of work	Maximum excavation height	mm	3565	4925	5684	5684	7173	8579	8598
	Maximum unloading height	mm	2460	3475	3972	3972	5259	6188	6206
	Maximum digging depth	mm	2305	3135	3882	3882	4152	5456	5470
	2500mm horizontal excavation depth	mm	/	/	/	/	/	5456	/
	Maximum vertical digging depth	mm	2050	2280	2865	2865	3415	4888	4921
	Maximum excavation radius	mm	3935	5386	6164	6164	6355	8283	8317
	Minimum radius of turn	mm	1530	2360	1650	1650	1750	2501	2501

IMP Group, founded in 2021 with a registered capital of 30 million yuan, is headquartered in Xuzhou, Jiangsu Province., is headquartered in Xuzhou, Jiangsu Province. As a national high-tech enterprise, the Group integrates research and development design, production and manufacturing, international trade, e-commerce, and logistics transportation. Driven by technological innovation, IMP continuously develops more than 40 categories of new and practical mechanical equipment, such as wheeled excavators, drilling machinery, new energy photovoltaic pile drivers, and more. Covering an area of over 35,000 square meters, the factory currently employs more than 100 people.
Since its establishment, IMP has established a complete market operation system and industrial value chain. Leveraging the innovative model of "Internet + traditional manufacturing," the company has achieved sustained and rapid development in the new industry of cross-border e-commerce. The Group places a strong emphasis on product innovation and quality, committing itself to intelligent modifications, such as the application of remotely controlled pile driving equipment, to ensure construction safety. Additionally, it continues to introduce new excavation equipment, enabling customers to achieve multi-functionality and increased profitability.
IMP attaches great importance to intellectual property rights and talent cultivation, holding over 10 invention patents and more than 30 utility model patents. Its products have passed quality and safety inspection certifications from the EU CE, Germany TUV, France BV, among others, and its business reaches across Asia, Africa, North America, and Oceania.
Adhering to the principle of reputation and service as its foundation, IMP offers a one-stop service system including product experience, user training, maintenance support, and parts supply. Its user-friendly and intelligent high-quality services have received widespread praise and recognition from customers.
Committed to becoming a preferred brand for customers, IMP strives to provide cost-effective products and services. Heading towards the goal of establishing a century-old brand and a top-tier enterprise culture, the company will continue to move forward.

---
