Automatic Dry noodle making machine Stick Noodle Maker Noodle Forming Machine

Product Details

Product Description

Product Description

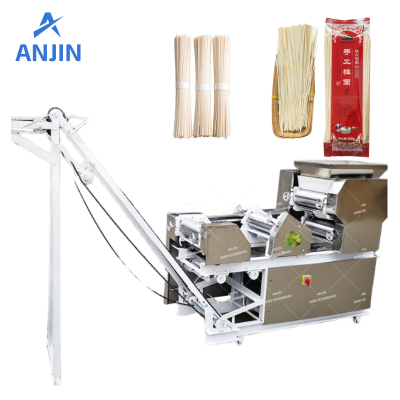

This Dry noodle making machine can make dry stick noodles with different capacities. Through replacing the knives, can making in different shapes or sizes. It should working with Flour mixer for prepare the water, flour and other ingredients . If you want making fresh noodle or wet noodle can check the Fresh noodle making machine here. If you want making both fresh noodle and dry noodle please talk with us for getting your customized solution.
Feature of Dry Noodle Making Machine:
1. Full steel gear transmission, full bearing, small dimension, and compact structure;
2. Automatic conveying in the entire process, forming for one time, automatic cutting and hanging on rod and rising.
3. Noodles making machine is fitted with a heavy-duty mild steel fabricated structure;
4. Easy operation, rapid production, and the thickness of noodles is adjustable;
Usage scenarios
Production of dried noodles, multi-grain noodles, vegetable nutritious noodles, colored noodles, hot dry noodles, hand-rolled noodles
Supporting equipment:
Flour mixer, elevator, noodle proofing machine, dryer, noodle steamer, cutting machine, packaging machine etc.
Finished Product:
Parameter datas:

Model	Capacity	Voltage	Power	Dimension	weight
AJ-5-250B	140-160Kg/h	380V50HZ3P	3kw	1700×680×1370mm	510kg
AJ-6-260B	200-260Kg/h	380V50HZ3P	3kw	2200×700×1370	680
AJ-6-300B	250-300Kg/h	380V50HZ3P	4kw	2200×750×1370	700
AJ-7-300B	250-300Kg/h	380V50HZ3P	4kw	2900×750×1370	750
AJ-7-350B	280-320Kg/h	380V50HZ3P	4kw	2900×800×1370	780
AJ-9-300B	250-300Kg/h	380V50HZ3P	6kw	4400×800×1370	1050
AJ-9-350B	280-350Kg/h	380V50HZ3P	6kw	4400×850×1370	1200

Common Knives specification:
Flat knives:0.75mm, 1mm, 1.25mm, 1.5mm, 1.75mm, 2mm, 3mm, 4mm, 5, 6, 8, 10, 12, 15, 20mm;
Round knives: 1.25mm, 1.5mm, 1.75mm, 2mm, 2.5mm;
(Three flat knives are standard when shipped from the factory, and the price difference needs to be paid when replacing other knives)

---
