Product Description

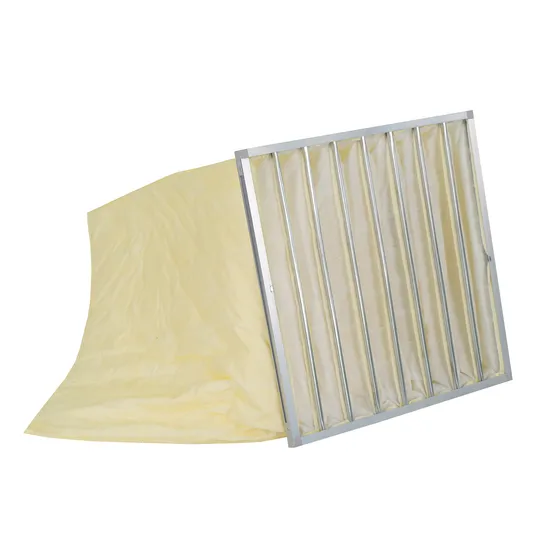

Synthetic pocket bag air filters
Pocket Bag Air Filters are typically used as a secondary or final filter used after a pleated filter. Bag air filters, often referred to as bag filters and pocket filters, come in five levels of efficiencies; 40-45%,60-65%, 80-85%,90-95% and above 95%- or MERV 8,11,13,14,and15 ratings.
The filter is made with pieces of media, sealed together to form pockets. Each bag air filter can have a specified number of pockets, whether they be 3 pocket bag filter, or 4/ 6 /8/10 pocket bag filter, the pockets themselves can vary in length. With these combinations of pockets and lengths, many surface areas sizes can be created. Generally, a larger surface area will give you better Dust Holding Capacity and longer service life of the filter.
SPECIFICATIONS
Frame: Galvanized steel /Aluminium profile/ Stainless steel / Plastic
Media: Synthetic fiber/Glass fiber
Fiber class according to EN779: 2012:G4-F9
Fiber class according to ASHRAE 52.2-2007:MERV8,MERV 11,MERV 13 ,MERV 14,MERV15
Color: G4 White/ M5 Orange / M6 Green / F7 Pink / F8 Yellow / F9 White
Maximum temperature: 93ºC
ADVANTAGES* Uniform pocket shape permits maximum air flow, minimum resistance* High strength mechanical staking secures pockets to prevent
separation under high turbulent conditions* Preferred option for fly ash
* Simple to operate
COMMON DIMENSIONS

Nominal Size WxHxD (in.)	Actual size W×H×D (mm)	No. of Pockets	Filter Rating (EN779:2012)	Air Flow (m³/h)	Initial P.D (Pa)	Rec. Final P.D (Pa)
24×24× 15	595×595×380	3	M5	3400	65	250
12×24× 15	287×595×380	6		1700	65	250
24×24×22	595×595×560	10		3400	55	250
24×24×22	595×595×560	8		3400	60	250
24×24×30	595×595×760	10		3400	50	250
24×24×30	595×595×760	6		3400	55	250
24×24× 15	595×595×380	3	M6	3400	80	250
12×24× 15	287×595×380	6		1700	80	250
24×24×22	595×595×560	10		3400	70	250
24×24×22	595×595×560	8		3400	75	250
24×24×30	595×595×760	10		3400	55	250
24×24×30	595×595×760	6		3400	60	250
24×24× 15	595×595×380	3	F7	3400	120	250
12×24× 15	287×595×380	6		1700	120	250
24×24×22	595×595×560	10		3400	75	250
24×24×22	595×595×560	8		3400	80	250
24×24×30	595×595×760	10		3400	65	250
24×24×30	595×595×760	6		3400	70	250
24×24× 15	595×595×380	3	F8	3400	160	250
12×24× 15	287×595×380	6		1700	160	250
24×24×22	595×595×560	10		3400	95	250
24×24×22	595×595×560	8		3400	105	250
24×24×30	595×595×760	10		3400	72	250
24×24×30	595×595×760	6		3400	80	250
★ Available with G4 M5,M6, F7, F8 ,F9 efficiency. Many frame options and dimensions are available on request.

PRODUCT DETAILS
SNYLI PRODUCTION WORSHOP
Company introductionSNYLI Environmental Technology (Shandong) Co., Ltd. (Abbr.: SNYLI) is a professional service provider of air purification products integrating R&D, design, production and sales for more than 10 years, with the registered brand of "SNYLI". We are a Company with ISO 9001:2015 and CE Certificates, our primary and medium filters are tested according to ISO 16890 and EN 779:2002. Each HEPA filter and ULPA filter will be scanned to detect possible leaks and filter performance, such as initial pressure drop and filter efficiency.
Since established in 2010, SNYLI always takes deeply contributing innovation and development of the air purification industry as its original intention and mission. With a decade of technology accumulation, SNYLI is growing up to a company with advanced manufacturing equipment, production technology, testing technology.

---
