5t European-Style Electric Wire Rope Hoist for Double Girder Overhead Crane

Product Description

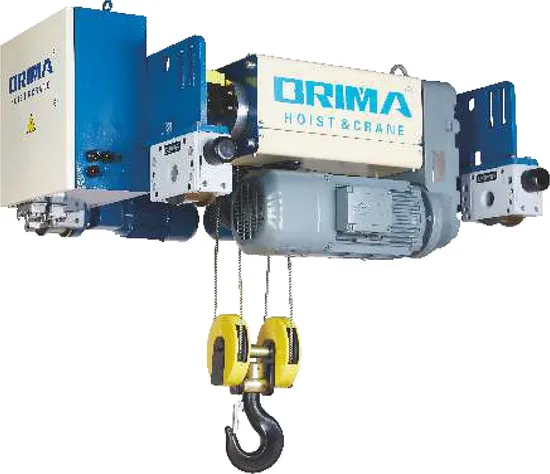

5T European-style Electric Wire Rope Hoist For Double Girder Overhead Crane

The wire rope hoist for double-girder crane is an important lifting equipment. Here is its detailed introduction:

Structural features
Drum and wire rope: The drum is usually made of high-strength steel and is used for winding the wire rope. The wire rope is made by twisting multiple strands of steel wire and has high strength. Hook: The hook is used for hanging heavy objects and is usually made of high-quality alloy steel. Motor and reducer: The motor provides power. Through the reducer, the high-speed rotating motor output is converted into low-speed and high-torque output to meet the lifting and running requirements of the hoist. Brake: The brake is used to lock the drum when it stops running to prevent heavy objects from sliding.
Working principle The wire rope hoist for double-girder crane is driven by a motor to drive the reducer. The reducer drives the drum to rotate, thus realizing the take-up and pay-off of the wire rope. When the wire rope is wound on the drum, the hook rises; when the wire rope is released from the drum, the hook descends. During the lifting and descending process, the brake can brake the drum at any time to ensure the safety of heavy objects.
Application scenarios
Industrial plant:In industrial plants, wire rope hoists are often used to lift heavy objects such as raw materials, semi-finished products and finished products.
Warehouse: In warehouses, wire rope hoists can be used for loading and unloading goods, stacking goods and other operations. It can improve the logistics efficiency of warehouses and reduce labor intensity.
Construction site: On construction sites, wire rope hoists can be used to lift construction materials, equipment and other heavy objects. It can be installed on large lifting equipment such as tower cranes and gantry cranes, or used alone, with the advantages of strong adaptability, safety and reliability.
Advantages
Large lifting capacity: The wire rope hoist choose different lifting capacities according to different needs. The maximum lifting capacity can reach dozens of tons or even hundreds of tons.
High work efficiency: The wire rope hoist is driven by a motor and has a relatively high lifting speed and running speed, which can greatly improve work efficiency.
Simple operation: The operation of the wire rope hoist is very simple. Lifting, descending and running operations can be realized only through buttons or remote controls.
Safe and reliable: The wire rope hoist has perfect safety protection devices such as overload protection, limit protection and brake, which can ensure the safety of heavy objects.

If there is a demand, please inform us of the following data. We will select a suitable model for you according to the actual working conditions.

Hoist Capacity	Lifting Height	Lifting Speed	Traveling speed	Beam Width

---
