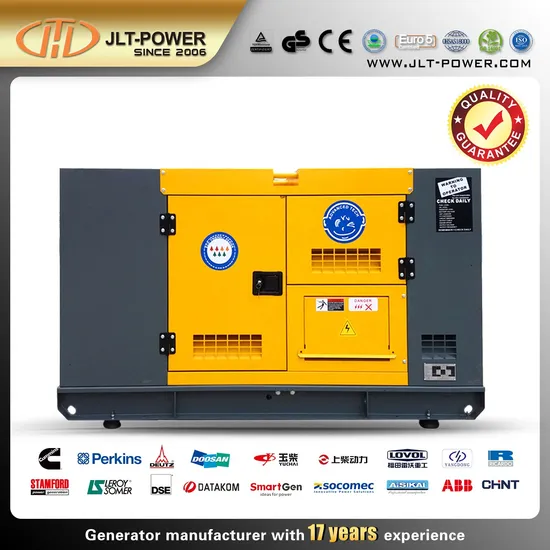

JLT power 24kw 30kVA Silent Diesel Generator Set with Yangdong Engine

Product Description

Product Description Product Description

GENSET MODEL	JY-30/S
Prime power (kW/kVA)	24/30
Standby power (kW/kVA)	27/33
Frequency (Hz)	50
Voltage (V)	220/380,230/400,240/415
Power factor	0.8
Ambient temperature (°C)	40
Altitude (m)	1000
ENGINE MANUFACTURER	YANGDONG
Engine Model	Y4100D
Rated Power (kW)	32
No. of cylinders & configuration	In-Line 4 cylinders
Method of operation	4 Stroke
Speed regulation	Electronic Governor
Starting system	DC 12V Electronic start
Cooling method	Closed-circuit cooling system
Total displacement (L)	3.707
Compression ratio	18.0:01
Bore×Stroke (mm)	100*118
100% Load fuel consumption (L/h)	8.92
ALTERNATOR MANUFACTURER	JLT-POWER
Number of Phase	Three Phase
Power Factor	0.8
Protection Grade	IP21
Winding/ Pitch	100% Copper 2/3 Pitch
Cooling Fan	Cast alloy aluminum
Exciter Type	Brushless, Self-Exciting
Insulation Class, Temperature Rise	H/H
Telephone Influence Factor( TIF)	TIF <5% / THF <2%
Total Harmonic TGH/THC	<1.5% no load / <5% on load
Voltage Regulation, Steady State	≤+-1%
Sustained Short-Circuit Current	300% (3in):10s
Control System	Smartgen HGM6110N
ATS	Optional

Detailed Photos
Company Information

JLT POWER
Fujian Jinlongteng Power Engine & Machinery Co.,Ltd. is a highly professional and experienced manufacturer of engines, generatorsand water pumps. We have specialized in this field over 10years and always dedicated to produce the engines, generators and waterpumps in high quality with reasonable prices.
Our products include:
1, Gasoline Type Engine: 5.5Hp, 7.0Hp, 13.0Hp and 15.0Hp.
2, Diesel Yammar Type Engine: 4.0Hp, 7.0Hp and 10.0Hp.
3, Portable Gasoline Generators: 0.65kW, 2.0kW, 2.5kW, 2.7kW, 5.0kW, 6.0kW, 10kW.
4, Portable Diesel Generators: 2.0kW, 3.0kW, 5.0kW and 6.0kW.
5, Water cooled diesel generators range from 10kVA to 1500kVA.
Powered by Cummins, Deutz, Isuzu, Lovol, Chinese Ricardo, Yangdong, Quanchai and so on .
Why Choose Us:
1, Since 2006, with over 17years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4, Own design team, can help you custom the packaging.
We are a professional manufacturer for engines, generators and water pumps with integrating development, production and sales. Factory located in one of the early open cities Fuzhou, with more than 100,000 square meters.Warmly welcome all partners to join usfor mutual benefits cooperation.
Packaging & Shipping
After Sales Service
(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.Our Service:Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.

FAQ
Contact Us Add: No.8 Qingkou Investment Wuhu Mountain Industrial Zone,Fuzhou, Fujian, China.
Please free to contact us at any time. Thanks again.
If you are interested, Please send us your inquiry immediately. We are glad to be of service to you. Thanks Again.

---
