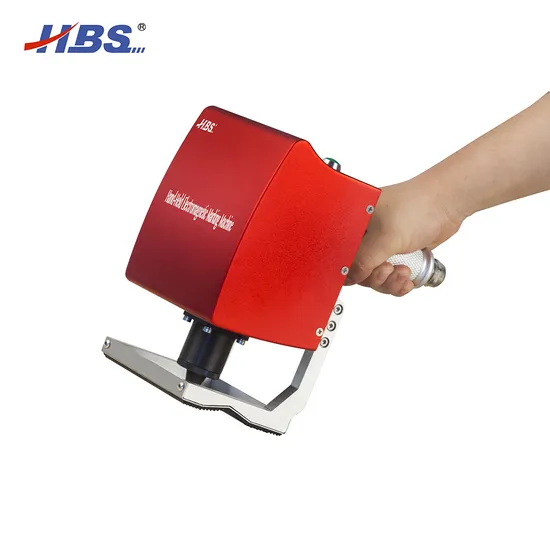

Hbs-380d Portable DOT Peen Marking Machine/Handheld DOT Peen Machine for Vin Number/Vehicle Chassis Number

Product Description

HBS-380D portable dot peen marking machine/handheld dot peen machine for VIN NUMBER/Vehicle Chassis Number DOT Peen Marking Machine
I Product Features:
--The Latest machine developed by the HBS, function without compressed air supply. It's a pioneer product in China with registered patents. The electromagnetic marking can be used anywhere as long as there is power supply. It can be equipped with battery in case of field work. Compared with pneumatic marking systems, noise level is lower.
--The portable marking head is ideal choice for marking on large-scale or heavy work pieces which is difficult to move.
--Fully off-line operation, user friendly interface,easy to use and simple to operate.
--Automatic marking of Chinese and English characters, running numbers, VIN code, bitmap font, 2D code, etc.
--Marking pin is made of typical hard alloy and marking on products with hardness up to HRC62.
--Anti-interference, strong resistance against radiaion and well adapted for harsh environment work.
--Extremely low failure rate, less maintenance
--Low power consumption, low cost, low price
II Parameters:

Model	HBS-308D
Marking Size	30mm x80mm
Marking pattern	Line, arc, angle, dot matrix.
Printing depth	0.05-0.3mm(Depending on the material)
Printing hardness	Below HRC62 degrees
Printing speed	25 characters per second
Power Supply	AC220V ±10% 50Hz
Port	RS232, USB
power dissipation	350w

III Product Application:
Widely used in the marking of gold, silver diamond and other jewelries, sanitary tools,
food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging,
medical equipments, watches & glassware, automotive parts, plastic & paper material,
electronic hardware, gold bullion, and also in other areas such as aviation,
aircraft manufacturing, projectile body and explosion proof materials.
IV Packaging Details:
Package: 620x290x460 mm
Machine head: 530x220x660 mm
Machine head: 138X100X50 mm
Controller: 235X185X190 mm
Gross Weight: 10 kg
Net Weight: 8 kg
Machine head: 3.6 kg
Controller: 4.4 kg
V Exhibition: METAV 2018
VI Company Info:
Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!

---
