High Quality CNC Lathe Cermet External Turning Inserts Vnmg160408 Vnmg160404 Hq Indexable Turning Tools

Product Description

Zhuzhou XL Cemented Carbide Co.LTD,branded as XL carbide factory, is a professional manufacturer of Cutting Tools and Carbide material. Since XL Carbide started ,it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.

50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so o


ISO Type: VNMG160408-PM

Grade: 8125/7225/6120

Chip Breaker: PM/MA/MS/TM/FM etc

Chip Breaker Application:
Recommended chipbreaker for semi-finishing P-kind materials
Double-side chipbreaker with M-class tolerance has higher toughness on cutting edge than DPM chipbreaker. It's suitable for semi-finishing under unfavorable conditions. Also good for machining cast iron with low cutting force.

Grade Description: MT-TiCN + Al2O3 + TiN coating on carbide

Grade Application:
Substrate with special matrix, in combination with Ti(CN), thick layer AI2O3, and TiN coating. With the resistance to rake face diffusion and plastic deformation, it is good for finishing and semi-finishing (turning as well as boring) of stainless steel.

Workpiece Material (ISO): Cast Iron /stainless steel/steel

Application: This insert is an excellent choice for general-purpose medium machining of steels.

Package: Product sold in packs of 10 units.

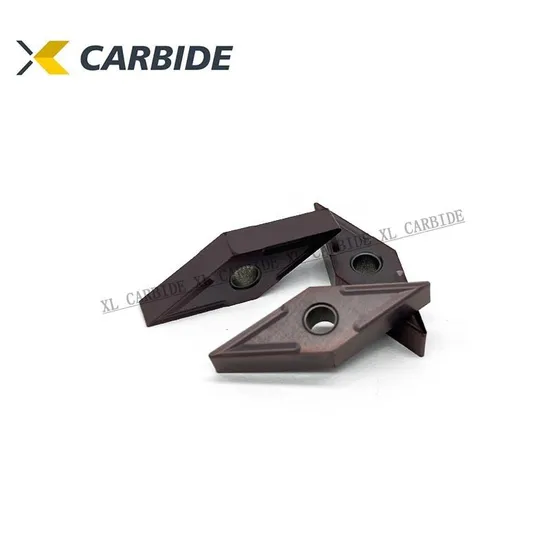

Products Pictures:

Advantages:

--Efficiently solved build up edge,work hardening and other machining problems
--Cutting edge inclination designation is good to control chip flow direction and obtains excellent surface quality
--sharp cutting edge, small cutting force
--good machining surface quality
--special chipbreaker design to keep cutting edge sharp and safe
--good anti impact resistance
--excellent tool life time

---
