Product Description
Product Description

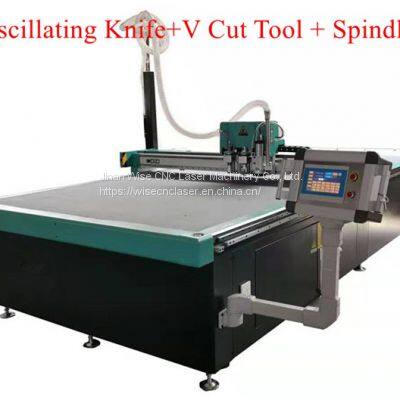

Description & Specifications of quoted machine-standard single vibrating head:
|
X working size
| 1600mm, if with double heads such as creasing wheel or other tools, working size will be 1500mm-1550mm, if with camera and spindle, machine working width will be about 1300-1400mm
|
Y working size
| 2500mm
|
Z working size
| 10mm max
|
Cutting head
| cnc oscillating knife cutting head
|
Display way
| English LED touch screen
|
Machine table
| Aluminum bellow Suction Table with 9 suction zone
|
Data transfer way
| Intel
|
Vacuum pump
| 9KW air type vacuum pump
|
Driving system
| Taiwan delta servo driver and motor
|
Control system
| RD control system
|
Guiding system
| Taiwan TBI square rail
|
Tool sensor
| With, red dot
|
Transmission
| Y rack pinion, XZ synchronous steel belt
|
Cutting speed
| 30m/min
|
Traveling speed
| 50m/min
|
Weight
| About 600kgs
|
Size
| 2250*3300*1650mm
|
Power
| 380V 50HZ
|
Software
| vcutworks, machine has this software, support dxf, plt format file
|
Features:
High speed: Only need 80 seconds to finish one set of car foot mat., only need 6 minutes to finish one set of car cushion mattress
High efficiency: don't need any die mold, or die mold cutting machine, this machine can press mark, cutting and molding on soft material such as leather, carton etc. Save much labor and cost.
Low cost: one machine can do design, cutting instead of manual design and cutting, save labor, and material wastage cost.
Wide application: This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding,
Sponge+drape+composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.
Good performance: adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.
Cnc oscillating knife cutting machine Application:
Sofa, seat, car seat cover, automobile floor mat, automotive carpet, luggage, handbags industries, applied to the shoe industry, clothing industry, composite materials, luggage industry, automobile industry, advertising printing industry, electronics industry, decoration industry, furniture industry and so on
>>
