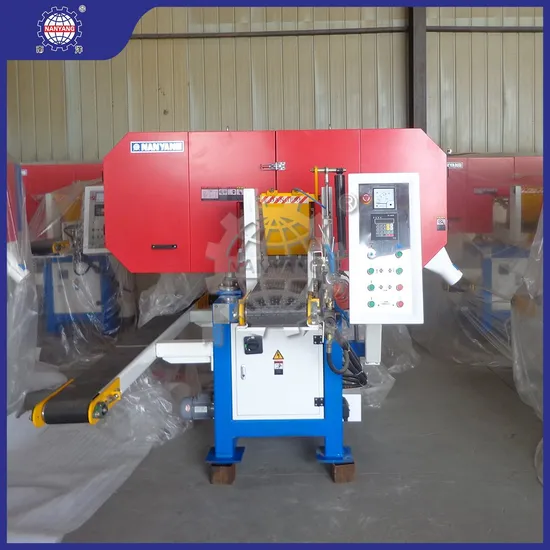

Nanyang Mj357ax250 Hydraulic Sawmill China Manufacturing 205 X 200mm Sawing Diameter Portable Horizontal Rotary Table Band Saw

Product Description

NANYANG MJ357Ax250 Hydraulic Sawmill China Manufacturing 205 x 200mm Sawing Diameter Portable Horizontal Rotary Table Band Saw

Product Description
Horizontal Wood Band Saw
Horizontal band saw machine is a kind of mechanical equipment used to cut various large-sized and long workpieces, such as wood, pipes, etc. The way it works is that the workpiece is placed horizontally on the workbench and then cut by a rotating saw blade. Compared with the vertical band saw machine, the horizontal band saw machine has different working methods and structure, so it has some specific advantages,
Such as wide application range, high efficiency, high cutting precision, good stability, versatility and easy operation, etc. These advantages make horizontal band saws widely used in many industrial fields, especially for processing large-size workpieces.
Product Parameters
Technical Parameters

Item	MJ357A×250	MJ357A×400	MJ357A×500
Max.Sawing size (Saw blade to 60mm)	250×200mm	400×200mm	500×200mm
Distance from the saw blade to the worktable	3-80mm	3-80mm	4-80mm
Width of conveyor belt	235mm	385mm	485mm
Saw wheel Diameter	711mm	711mm	711mm
Feed speed	0-18m/min	0-18m/min	0-14m/min
Lifting motor	0.18kW	0.18kW	0.18kW
Saw wheel motor	15kW	18.5kW	22kW
Hydraulic pressure	55kg/cm2	55kg/cm2	55kg/cm2
Dust out belt diameter	102mm×2	102mm×2	102mm×2
Size of saw blade (L×W×H)	4572×27×0.9mm 4572×41×1.27mm	4572×27×0.9mm 4572×41×1.27mm	4920×27×0.9mm 4920×41×1.27mm
Saw kerfs	1.2-2.2mm	1.2-2.2mm	1.5-2.2mm
Dimensions (L×W×H)	3000×2230×2050mm	3000×2230×2050mm	3000×2230×2050mm
Weigh	1700kgs	1900kgs	2000kgs

Performance Characteristics
This machine is applicable to the cutting of square wood in high precision and standard specifications with the following features:
1. User-friendly PC interface for simple and convenient operation
2. High-precision rotary encoder in combination with precision ball screw to control the sawing thickness at higher precision.
3. The assisted revert system is safe and reliable, saving labor and time.
4. The PLC integrated control system is safe and reliable.
5. Hydraulic saw blade tension auto-compensation system ensuring the saw blade is always at the best tension state to prolong the service life of the saw blade.
6. Hydraulic motor drive is used for conveyor belt, performing stably and constantly and powerfully and ensuring operation to be flat and smooth.
7. Specially designed multi-set pressing device ensuring wood is reliably pressed during sawing to guarantee safe operation.
8. Saw blade cooling, lubricating, and dedusting system ensuring cooling, lubricating, and dedusting of the saw blade at once safely and in an unpolluted way
Automation Control Panel
1. The console design is simple and intuitive, making it easy to operate.
2. The console is equipped with a variety of function buttons or adjustment devices, which can be adjusted according to different processing needs to improve production efficiency and processing accuracy.
3. The console is equipped with various safety devices to ensure safety.
4. The console is equipped with a display screen and indicator lights, which can display the operating status, parameter settings, and other information about the equipment.
High cutting accuracy
The horizontal band saw machine can achieve precise cutting of workpieces, ensuring a smooth cutting surface and accurate cutting dimensions.
Good stability
Since the workpiece is placed horizontally on the workbench, the horizontal band saw machine usually has good stability, which can ensure that the workpiece is not easy to move during the cutting process, improving safety and stability.
Versatility
Horizontal band saw machines usually have multiple cutting functions, which can achieve cutting at different angles and shapes to meet different processing needs.
Cast Iron Saw Wheel
Dynamic Balancing Plus
Work Operation Is More Stable
