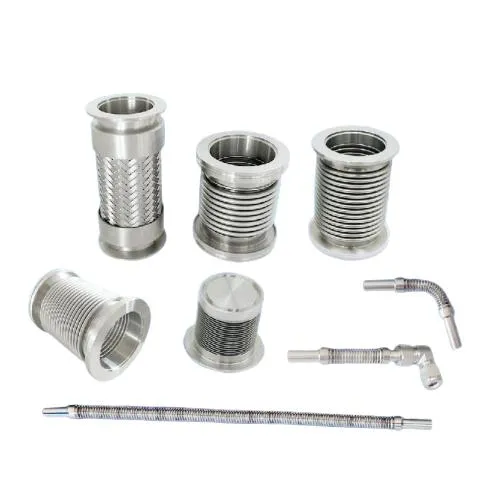

High Pressure Stainless Steel 304 316 Vacuum Seal Metal Bellows Edge Welded Vacuum Bellows

Product Description

High pressure stainless steel 304 316 Vacuum seal Metal bellows Edge Welded vacuum bellowsProduct DescriptionBellows are used as sealing parts, widely usedin chemical industry or vacuum systemn, hightemp or high -riskfluids, as well as the pipelines that request strict sealing.With corrosion preventive characteristic,are used in chemistry industry. And can be customized according to the customers requirements.
Product Parameters

Type	Description	size	Wall thickness	OD of fitting	Overall Length
Type1	KF Vacuum Bellow	KF16FX	0.12mm	3	Length 100mm - 10M
		KF25FX	0.12mm	40
		KF40FX	0.12mm	55
		KF50FX	0.12mm	75
Type2	CF Vacuum Bellow	CF16FX	0.12mm	34	Length 100mm - 10M
		CF25FX	0.12mm	54
		CF35FX	0.12mm	70
		CF50FX	0.12mm	86
		CF63FX	0.17mm	114
		CF80FX	0.17mm	130
		CF100FX	0.2	152
		CF160FX	0.24mm	202
		CF200FX	0.25mm	253
		CF250FX	0.25mm	305
Type3	ISO Vacuum Bellow	ISO63FX	0.17mm	95	Length 100mm - 10M
		ISO80FX	0.17mm	110
		ISO100FX	0.20mm	130
		ISO160FX	0.24mm	180
		ISO200FX	0.25mm	240
		ISO250FX	0.25mm	290

If you want other types and sizes, please contact us and we can customize.
Application
Application
The vacuum metal hose is made of thin-walled stainless steel strip welded pipe with corrugated processing, which is flexible and has good temperature resistance. Pressure resistance. It is suitable for the transportation of air, steam, various industrial gas grades, water, oil, medicine and other fluid media, and plays an important role in the reciprocating motion of the piping system, thermal expansion system absorption, vibration absorption, and piping center adjustment.
Classification standard
According to different forming methods, it can be divided into: hydroforming vacuum bellows and hydroforming bellowsAccording to whether there is a gap, it can be divided into a bellows with a gap and a seamless vacuum bellowsAccording to the different elastic coefficients, it can be divided into elastic vacuum bellows and common vacuum bellows Related Products Center ring and O-ring Flange
Nipples Clamp
Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Our Company& Factory
Regards the quality of products as the soul of the company, based on this belief, we have invested heavily In the Introduction of modern advanced production equipment, so that workers make perfect production produce under the scientific process of production. Under the Joint action of advanced equipment and professional workers, our production ultimately achieved high efficiency, high-quality results, thereby enhancing the market competitiveness.FAQ1.Who are we?
We are China's TOP5 HV/UHV vacuum components manufacturer and OEM factory of internationally renowned vacuum components suppliers. Our R&D team members have over 25-year experience in the vacuum field, are supported by universities and academics.
2.What's your product's application?
Our vacuum components are mainly applied in HV/UHV(<10-1~10-10Pa) areas.
3.Do you have customization and OEM service?
We can produce the standard model sizes components including CF, KF, ISO, NW, etc. Meanwhile, our customization service is also good enough to accommodate your individual needs.
4.What quality standard do you follow?
We are ISO9001:2015 certified factory. The whole operation is strictly following the standard. Our QC department inspects every product before sending it out of the factory
In order to give you an accurate quotation, please let me check the following information of the vacuum bellow:Diameter (ID, OD)LengthMaterial (SS304, SS316L, SS316Ti, C276)Which series? (NW/KF/CF/ISO)Are the flanges/clamp or other fittings standardized? If not, drawings are requiredQuantityWelcome to your inquiry!

---
