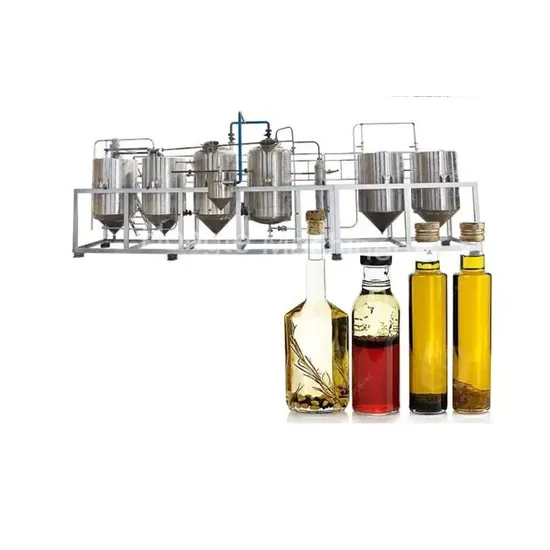

Customized Oil Refinery Machine for Cooking Oil Refining Oil Processing Machine

Product Description

Product Description
Oil Refining Machine Structure:
1.Small edible oil refinery machine structure:
The machine is consist of hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system and machine frame.
2.Hydration deguming&deacidification system of our small edible oil refinery machine:
This part is consist of mixer, deguming tank, gum outlet and transfer pipe
3.Filter de-coloring system of our small edible oil refinery machine:
This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth,
and oil outlet.
4.Transmission system of our small edible oil refinery machine:
This part is consist of speed control motor, motor controller, governor and power module
5.Electrical control system of our small edible oil refinery machine:
This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay, potentiometer and knob.
Product Parameters

No	Parts	Parts specification	Qty	Tank capacity/work capacity (L)	Power (kw)
1	Refining tank	DN700*1300	2	330/250	12/0.74
2	Vacuum dehydration tank	DN650*1290	1	390/250	12
3	Vacuum buffer tank	DN300*500	1	35	/
4	Decoloration tank	DN650*1100	1	360/300	/
5	Water circling vacuum pump	2BV2061	1	/
6	Oil Pump	/	2	/
7	Processing capacity	1-200t/24h (customized)

The full refining process can be divided into neutralization, washing, vacuum drying,decolorization, deodorization, and deparaffinization stages. Fully refined edible oil: light. Odorless, raises the point of smoke, and has a longer shelf life. Semi refining process: neutralization stage, washing stage, vacuum drying stage. After the semi refined edible oil: clear, the smell of the original edible oil is preserved, the smoke point is raised, and the oil shelf life is extended.
Low temperature cold filtration: after cooling down, precipitation and other processes take off the wax in the edible oil. Heavier solid particles. Low temperature and cold filtration preserved the maximum amount of nutrients in edible oil, and the original smell, after dewaxing guaranteed clear oil.
Edible oil refining is a set of processes or treatments necessary to turn vegetable raw oil into edible oil.
Raw vegetable oil, obtained from seeds by pressing, solvent extraction, contains free fatty acids and other components such as phospholipids, waxes, peroxides, aldehydes, and ketones, which contribute to undesirable flavor, odor, and appearance; for these reasons, all the oil has to be refined.

Application
Oil Refining Machine
It is suitable for refining various crude oil, vegetable oil, such as sunflower seed oil, tea seed oil, peanut oil, soybean oil, corn oil, groundnut oil and so on.
Installation case
Our Advantages
